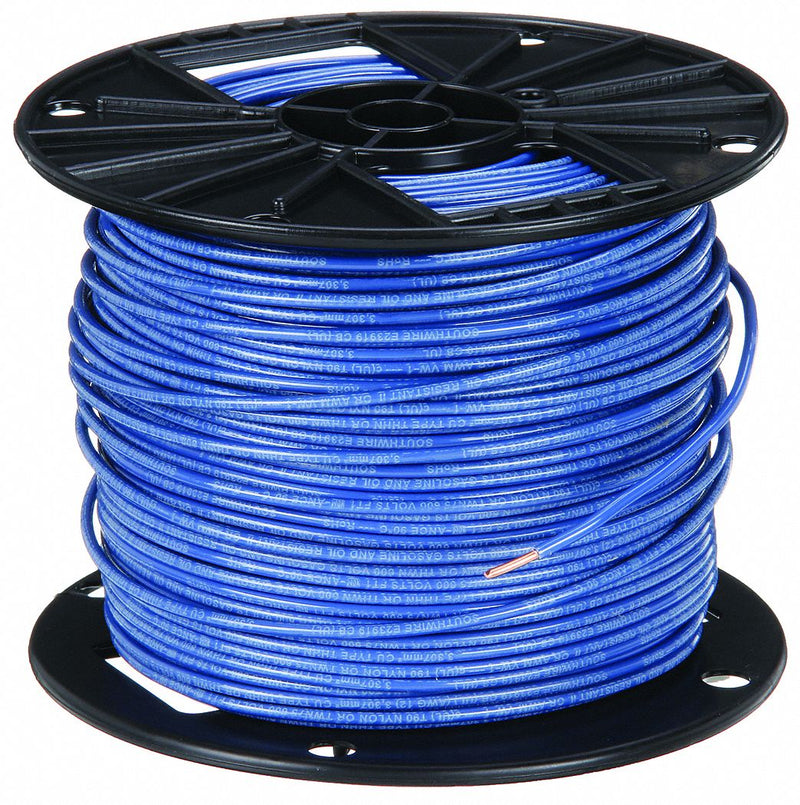

Southwire 11598001 THHN Copper 10 AWG Solid Blue 500 ft Building Wire

Southwire 11598001 THHN Building Wire, Copper, 10 AWG, 1 Conductor, Solid, Blue, 500 ft, 600V

UPC: 032886225307 | Harmonization / Schedule B : 8544.49.2000

Country of Origin: United States | Shipping Weight: 17.7 lbs

$259.36 - $259.36
$259.36
$259.36 - $259.36
$259.36

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Blue, Length 500 ft, Conductor Design Solid, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.15 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 1

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Blue
Jacket Color Blue
Jacket Material Nylon
Conductor Design Solid
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed
Max. Amps 30
Stranding 1
Packaging Spool
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C). Voltage for all applications is 600 volts. THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Allowable Ampacity At 75C 30
Construction Southwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Fire Resistance Rating Not Rated
Number of Strands 1
Temperature Rating - Maximum Wet 167 Degrees F
Temperature Rating - Maximum Dry 194 Degrees F
Conductor Insulation Material Nylon, PVC
Conductor Insulation Color Blue
Country of Origin United States
