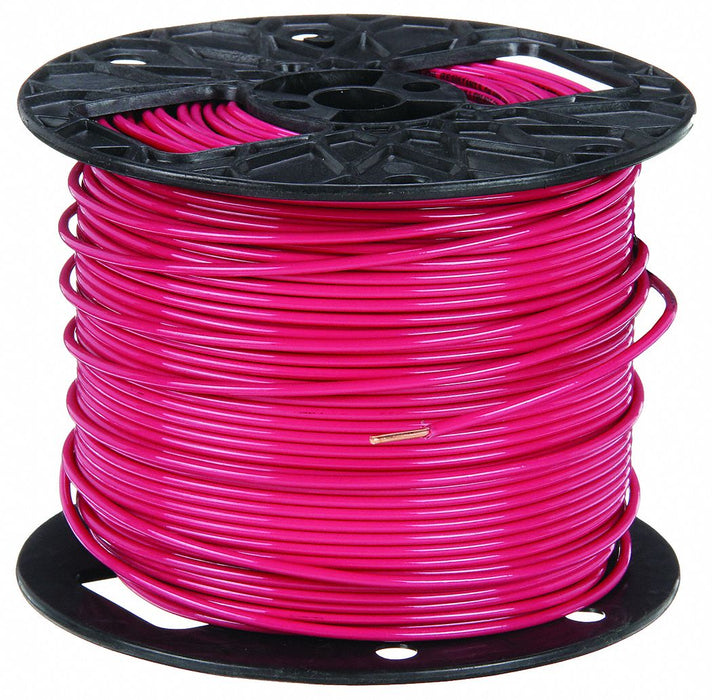

Southwire 11589901 THHN Building Wire, Copper, 12 AWG, Solid, Red, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor

Southwire 11589901 THHN Building Wire, Copper, 12 AWG, Solid, Red, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor

UPC: 032886224201 | Harmonization / Schedule B : 8544.49.9090

Country of Origin: United States | Shipping Weight: 12 lbs

$165.98 - $165.98
$165.98
$165.98 - $165.98
$165.98

Southwire 11589901 THHN Building Wire, Copper, 12 AWG, Solid, Red, 500 ft Spool, 600 V. UL Listed and CSA approved for both indoor and outdoor use. Black nylon jacket suitable for moisture, abrasion, and chemical resistance. THHN solid conductor for easy connections. Suitable for wet locations and oil exposure (below 75°C) and dry locations (below 90°C).

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Red
Jacket Material Nylon
Conductor Design Solid
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Stranding 1
Max. Amps 20
Packaging Spool
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Wire Size 12 AWG
Length 500 ft
Conductor Size 12 AWG
Nominal Outside Diameter 0.12 in
Minimum Bend Radius 1/2 in
