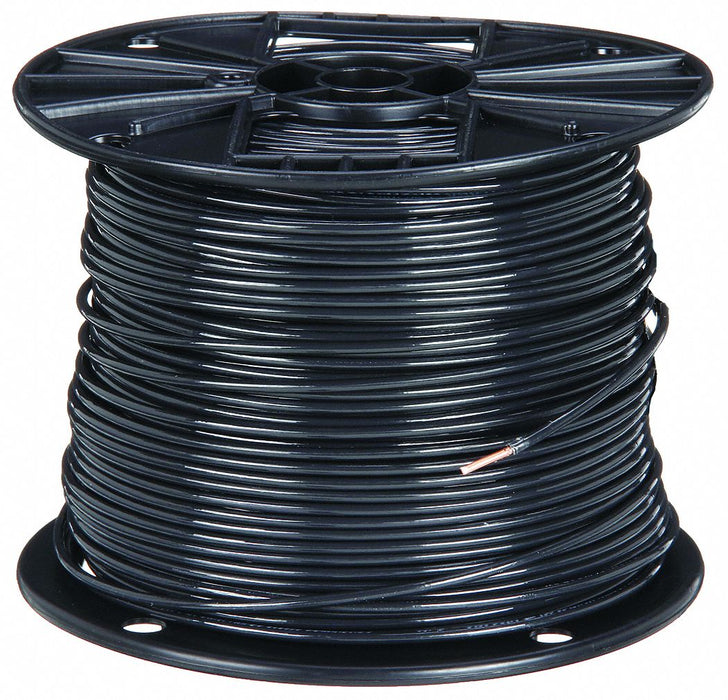

Southwire 11587301 THHN Building Wire, Copper, 12 AWG, Solid, Black, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor

Southwire 11587301 THHN Building Wire, Copper, 12 AWG, Solid, Black, 500 ft Spool, 600 V, Nylon/PVC Insulation, 1 Conductor

UPC: 032886224003 | Harmonization / Schedule B : 8544.49.9090

Country of Origin: United States | Shipping Weight: 12 lbs

$160.75 - $160.75
$160.75
$160.75 - $160.75
$160.75

When you need to run building wire, the Southwire 11587301 Building Wire is a dependable option. UL Listed and CSA approved for both indoor and outdoor use. 12 AWG, 600V AC voltage rating, black nylon jacket suitable for indoor and outdoor applications. 500 ft length per spool. THHN solid conductor for easy connections. Suitable for wet locations and oil exposure (below 75°C) and dry locations (below 90°C). Combination-unilay stranding; soft drawn copper.

Trade Designation THHN
Conductor Material Copper
Number of Conductors 1C
Wire Color Black
Jacket Color Black
Jacket Material Nylon
Conductor Design Solid
Insulation Material PVC
Voltage 600V AC
Temp. Rating 194°F
Standards UL Listed, E34382
Stranding 1
Max. Amps 20
Packaging Spool
Application Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Wire Size 12 AWG
Length 500 ft
Conductor Size 12 AWG
Nominal Outside Diameter 0.12 in
Insulation Thickness 15 mils
Jacket Thickness 5 mils
Minimum Bend Radius 1/2 in
