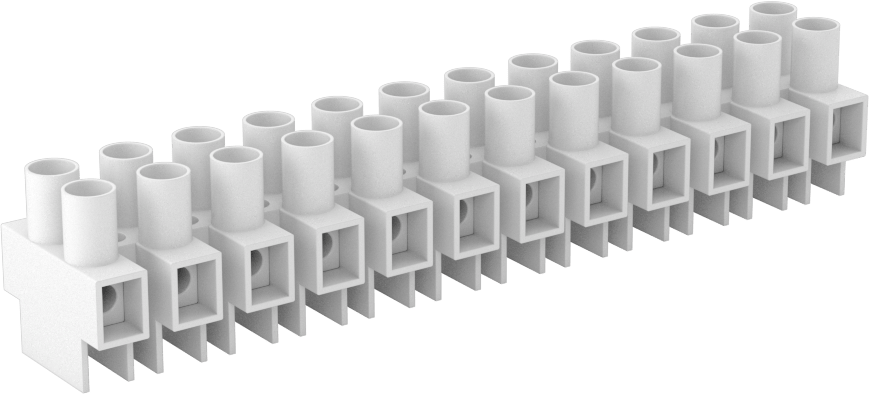

McMaster 7618K618 Short-Resistant Terminal Block, 600V AC/DC, Twelve 20A Circuits, Molex M800-01-12-5-M1

McMaster 7618K618 Short-Resistant Terminal Block, 600V AC/DC, Twelve 20A Circuits, Molex M800-01-12-5-M1

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: China | Shipping Weight: 0.15 lbs

$43.67 - $43.67
$43.67
$43.67 - $43.67
$43.67

These terminal blocks protect you from shocks and prevent short circuits. The terminals are recessed in the block, so you can't accidentally touch them when installing or adjusting your wire.

Screw-Clamp-Terminal Wire Connection — The clamp flattens the wire to resist pullout and vibration better than screw terminals. For an even stronger and more conductive connection, crimp a terminal or wire ferrule onto the end of the wire.

Voltage 600V AC/600V DC
Current per Circuit 20 amp
Number of Circuits 12
For Wire Ga. 22 to 12
Wire Connection Screw-Clamp Terminal
Terminal Size M3
Terminal Center-to-Center 5/16"
Length 3 11/16"
Width 3/4"
Height 3/4"
Minimum Temperature Not Rated
Maximum Temperature 221° F
Color White
Mounting Holes
Diameter 0.12"
Number of 11
Center-to-Center Length 0.32"
Certification UL Recognized Component
Flammability Rating UL 94 V-2
Manufacturer
Name Molex
Model Number M800-01-12-5-M1
Mounting Fasteners Included No
Mounting Location Surface
Performance Space Saving, Selectable Length, Touch Safe, Flame Retardant
Country of Origin China
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant with Exemptions
RoHS Exemptions 6(c)
Schedule B Number 8536.90.4000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
