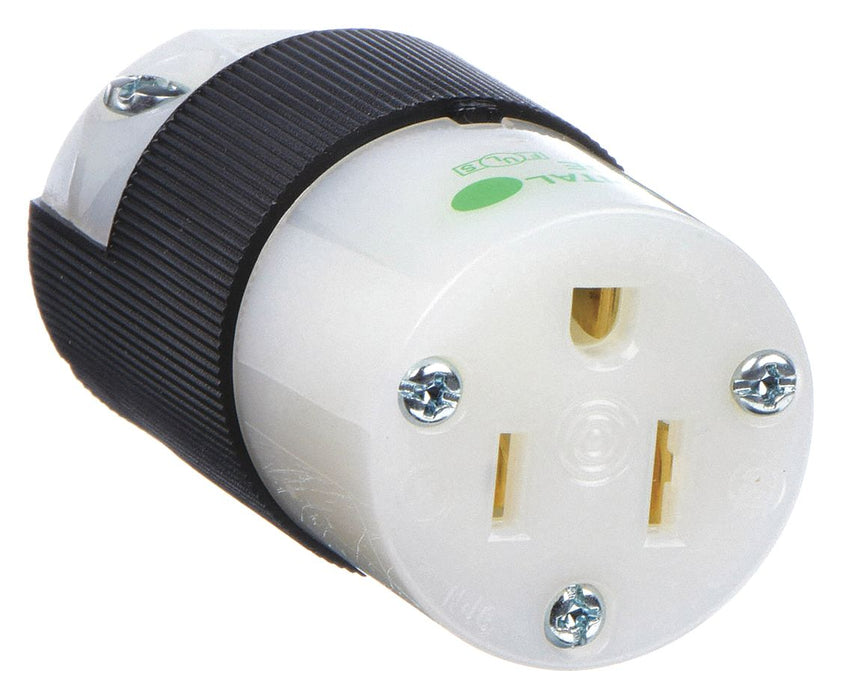

Hubbell HBL8219C Hospital Grade Connector 5-15R 125V 15A

Hubbell HBL8219C Straight Blade Connector, Hospital Grade, 5-15R, 125V AC, 15 A, Black/White

UPC: 783585179506 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.3 lbs

$58.46 - $58.46
$58.46
$58.46 - $58.46
$58.46

Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Hospital Grade, Grounding Grounded

NEMA Receptacle Configuration 5-15R
Current Rating 15 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Wire Connection Type Screw Terminals
Wiring Style Standard
Connection Orientation Straight
Grounding Grounded
Housing Color Black, White
Cap Type No Cap or Cover
Maximum Operating Temperature 75 Degrees C
Minimum Operating Temperature -40 Degrees C
IP Rating IP20
Standards CSA Certified, NEMA WD-6, UL Listed
Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant
Grade Hospital Grade
Material Nylon
Housing Material Thermoplastic Elastomer
Horsepower Rating 1/2 hp
Polarized Yes
Contact Material Copper
Weight 0.2 lb
Country of Origin United States
