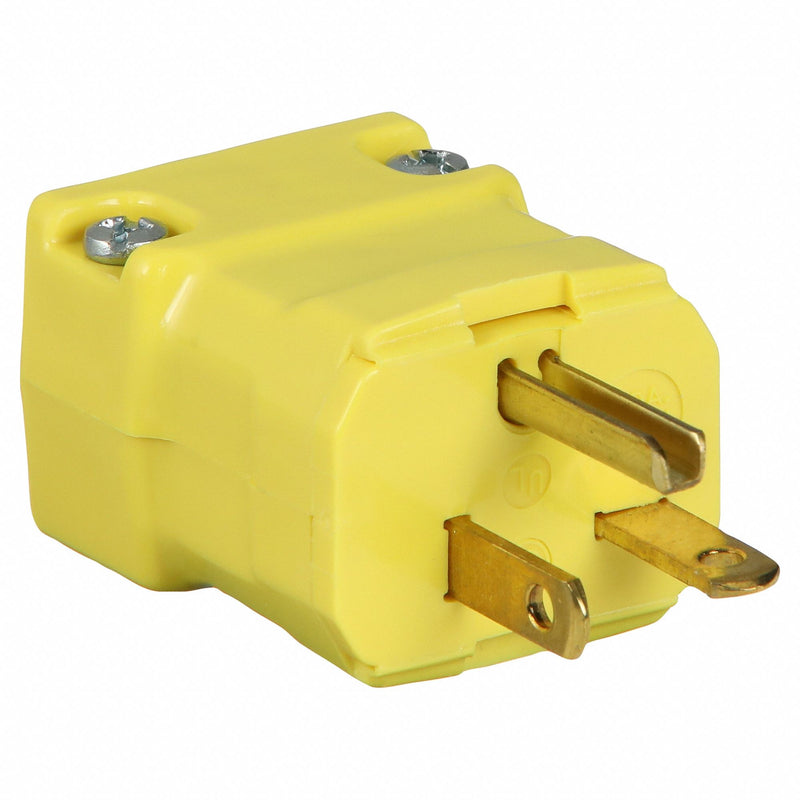

Hubbell HBL5464VY Straight Blade Plug 6-20P 250V 20A Yellow

Hubbell HBL5464VY Straight Blade Plug, 6-20P, 250V AC, 20 A, 2 Pole 3 Blade, Yellow

UPC: 783585013183 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.3 lbs

$35.16 - $35.16
$35.16
$35.16 - $35.16
$35.16

Hinged one piece body design for easy assembly. Powerful, offsetting cord grips clamp on individual conductors. Assembly screws are captive and will not fall out while wiring.

NEMA Plug Configuration 6-20P
Current Rating 20 A
Voltage Rating 250V AC
Phase Single
Number of Poles 2
Number of Blades 3
Wire Connection Type Screw Terminals
Wiring Style Hinged
Connection Orientation Straight
Grounding Grounded
Housing Color Yellow
IP Rating IP20
Standards CSA C22.2, UL 498
Resistance Properties Corrosion Resistant
Grade Industrial
Material Nylon
Maximum Operating Temperature 167 Degrees F
Minimum Operating Temperature -40 Degrees F
Horsepower Rating 2 hp
Polarized Yes
Blade Material Solid Brass
Weight (Lbs.) 0.15
Body Material Impact Modified Nylon
Country of Origin United States
