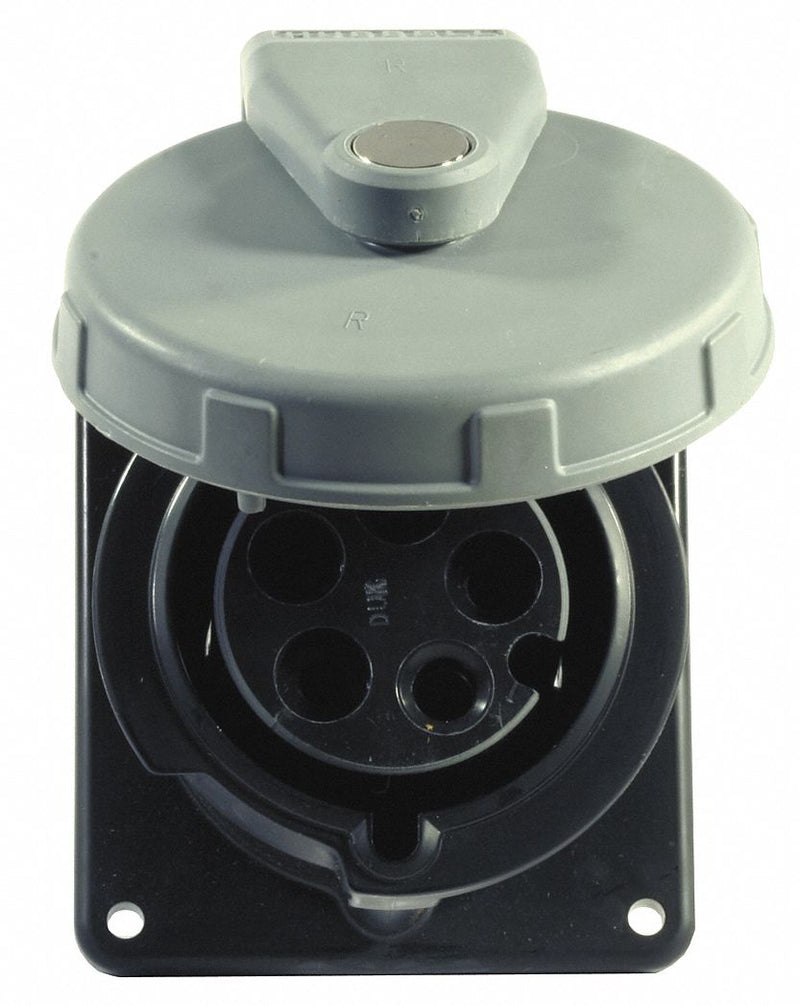

Hubbell HBL530R5W Pin and Sleeve Receptacle 30 A

Hubbell HBL530R5W Pin and Sleeve Receptacle, 30 A, 347/600V AC, 3-Phase, 4-Pole 5-Wire, Black

UPC: 783585405506 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 1.8 lbs

$525.94 - $525.94
$525.94
$525.94 - $525.94
$525.94

The Hubbell IEC Pin and Sleeve Receptacle, 30A, 600V is an electrical device rated for use with 30A, 600V connections in industrial settings. This receptacle features a straight connection orientation with pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. Constructed with Zytel 101 nylon and thermoplastic materials, it offers resistance to corrosion, impact, moisture, and UV exposure. The unit is grounded according to IEC standards, includes a spring-loaded cap, and carries an IP67 watertight rating.

Current Rating 30 A
Voltage Rating 347/600V AC
Phase Three
Number of Poles 4
Number of Wires 5
IP Rating IP67
Wire Connection Type Screw Terminals
Housing Color Black
Cap Type Spring-Loaded Cap
Standards CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Resistance Properties Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material Zytel 101 Nylon
Horsepower Rating 10 hp
Grounding Style IEC
Market Industrial
Connection Orientation Straight
Shrouded Yes
Number of Gangs 1
Flange Type Flanged
Minimum Operating Temperature -40 Degrees C
Maximum Operating Temperature 75 Degrees C
Screw Material 300 Stainless Steel
Flammability UL 94 5VA, UL 94 V0
UV Resistance All Materials are UV Stabilized
Product Type Watertight IEC Device
Retainer Material High-Impact Thermoset
Dielectric Strength 3000V AC
Weight 1.8 lb
Gasket Material Neoprene
Application High Ampacity Watertight Connections
Series HBL Heavy Duty
Connection Type Screw Terminals
Country of Origin United States
