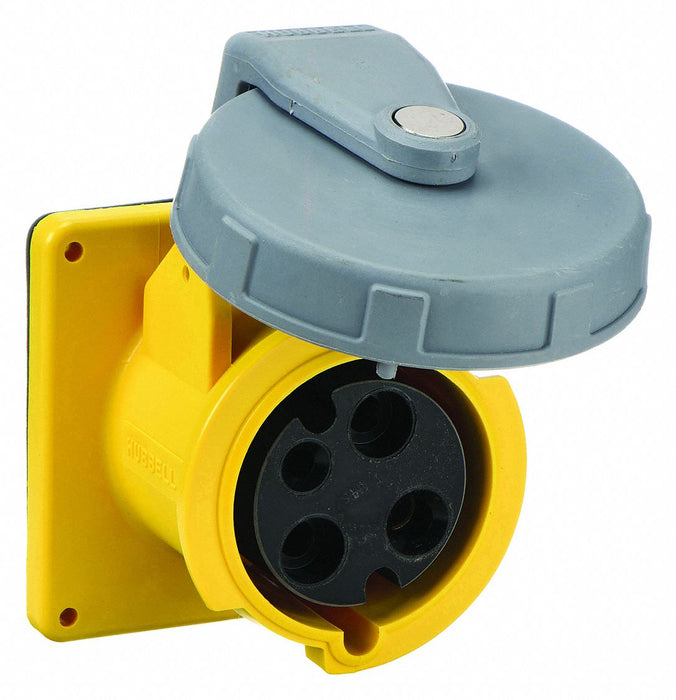

Hubbell HBL3100R4W Pin and Sleeve Receptacle, Yellow, 125V AC, Single Phase, 100 A, 2 Pole, 3 Wire

Hubbell HBL3100R4W Pin and Sleeve Receptacle, Yellow, 125V AC, Single Phase, 100 A, 2 Pole, 3 Wire

UPC: 783585403113 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 3.83 lbs

$786.55 - $786.55
$786.55
$786.55 - $786.55
$786.55

Watertight receptacles are designed to limit water and moisture intrusion when connected. They are used in wet or damp environments where occasional splashing or washdown conditions are expected.

Cap Type Spring-Loaded Cap
Connection Orientation Straight
Current Rating 100 A
Voltage Rating 125V AC
Phase Single
Number of Poles 2
Number of Wires 3
Number of Gangs 1
Horsepower Rating 5 hp
Features Color Coded
Flange Type Flanged
Grounding Grounded
Grounding Style IEC
Housing Color Yellow
Housing Material Thermoplastic
IP Rating IP67
NEMA Enclosure Rating 4X
Shrouded Yes
Reverse Service No
Switch Rated No
Power Indicating Light No
Minimum Operating Temperature -40 °C
Maximum Operating Temperature 75 °C
Minimum Wire Size 3 AWG
Maximum Wire Size 1/0 AWG
Wire Connection Type Screw Terminals
Standards CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
