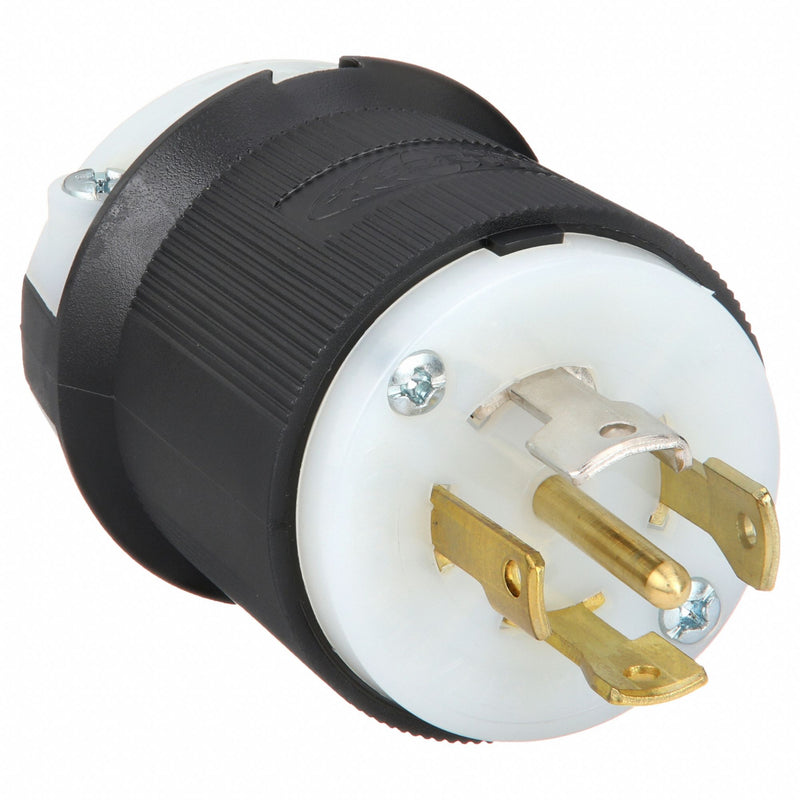

Hubbell HBL2821 Locking Plug L22-30P

Hubbell HBL2821 Locking Plug, L22-30P, 30 A, 277/480V AC, 3-Phase, 4 Pole, 5 Wire, Black/White

UPC: 783585039695 | Harmonization / Schedule B : 8536.69.4020

Country of Origin: United States | Shipping Weight: 0.35 lbs

$86.14 - $86.14
$86.14
$86.14 - $86.14
$86.14

• Ribbed nylon housing provides a secure grip and impact and chemical resistance. • Superior cord grip design protects terminations from excess strain. • Clear, funnel shaped wire entry for ease of termination. • Integral dust shield protects wiring chamber from dust or contaminants.

NEMA Plug Configuration L22-30P
Current Rating 30 A
Voltage Rating 277/480V AC
Phase Three
Number of Poles 4
Number of Wires 5
Number of Blades 5
Wire Connection Type Screw Terminals
Wiring Style Standard
Connection Orientation Straight
Shrouded No
Grounding Grounded
Housing Color Black, White
IP Rating IP20
Standards CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties Chemical Resistant, Impact Resistant
Boot Code C
Material Nylon
Grade Industrial
Application Extra Heavy Duty Industrial
Polarized Yes
Market Industrial
For Environment Dry
Horsepower Rating 10 hp
Housing Material Nylon
Minimum Operating Temperature -40 Degrees C
Blade Material Brass
For Location Indoor
Maximum Operating Temperature 75 Degrees C
Flammability HB or better per UL94/CSA 22.2 No.0.17
Amperage Rating 30 A
Material - Mounting Hardware Cord Mounted
OEM Brand Name Hubbell Wiring Device-Kellems
Cord Type All Listed Portables
Dielectric Strength Withstands 2,000V minimum
Cord Range 0.350"-1.150" (9-29)
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Antimicrobial No
Amps 30
Country of Origin United States
