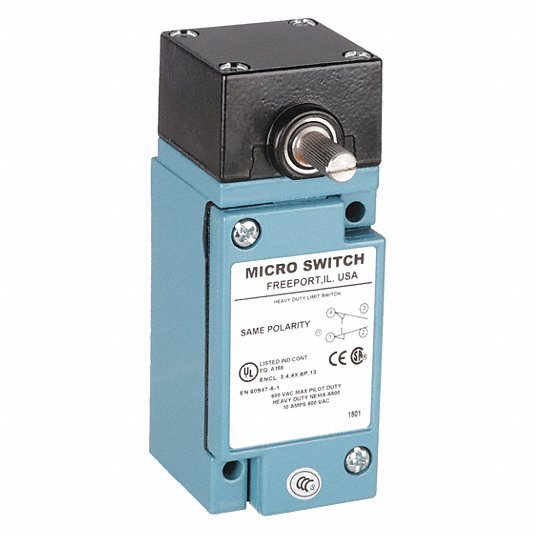

| Basic Actuator Style - Limit Switch |
Rotary |
| Actuator Style - Limit Switch |
No Lever, Rotary |
| Contact Form- Switches |
1NC/1NO |
| Actuator Location - Limit Switch |
Side |
| AC Contact Rating - Limit Switch |
10A at 600V |
| DC Contact Rating - Limit Switch |
10A at 250V |
| Body Style - Limit Switch |
Miniature |
| Mounting - Limit Switch |
Surface |
| Number of Poles |
1 |
| Body Material |
Zinc Die Cast |
| DC Contact Rating |
10A at 250V |
| AC Contact Rating |
10A at 600V |
| Mounting Hole - Limit Switch |
(2) 0.20 in dia |
| Amps |
10 |
| Actuator Location |
Side |
| Movement |
CCW, CW |
| Voltage Rating |
600VAC/250VDC |
| Actuator Style |
Rotary Head, No Lever |
| Body Style (Limit Switch) |
Miniature |
| Mounting Hole Spacing - Limit Switch |
2.34 in x 1.16 in |
| NEMA Rating |
1, 12, 13, 3, 4, 4X, 6, 6P |
| Operating Temp. Range |
10 Degrees to 250 Degrees F |
| Travel |
Differential Travel 5 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 60 Degrees |
| IP Rating |
65, 66, 67 |
| Stem Thread - Limit Switch |
No Stem |
| Boot Sealed Actuator - Limit Switch |
No |
| Series |
LSA |
| Boot Sealed Actuator (Limit Switch) |
No |
| Contact Form - Limit Switch |
1NC/1NO |
| Electrical Connection |
Screw Terminals |
| Contact Form |
1NC/1NO, SPDT |
| Actuator Style (Limit Switch) |
Rotary, No Lever |
| Mounting Hole Pattern - Limit Switch |
2 Hole Diagonal |
| Standards |
CCC, CE, CSA, UL |
| Actuator Location (Limit Switch) |
Side |
| Limit Switch Style |
Heavy Duty Limit Switch |
| Basic Actuator Style (Limit Switch) |
Rotary |
| Operating Force |
4.0 in-lb |
| Wiring Entry |
1/2"-14 NPT |
| Differential Travel |
5 Degrees |
| Operating Torque - Maximum |
4 in-lb |
| Directional Movement |
CCW/CW |
| Operating Temperature - Minimum |
10 Degrees F |
| Mounting Hole Horizontal Center to Center Distance |
60 mm |
| Resistance Properties |
Corrosion Resistant |
| Mounting Hole Vertical Center to Center Distance |
30 mm |
| Number of Mounting Holes |
2 |
| Operating Temperature - Maximum |
250 Degrees F |
| Overtravel |
60 Degrees |
| Includes Actuator |
No Actuator Included |
| Body Configuration |
Non Plug-In |
| Action |
Momentary |
| Boot Sealed Actuator |
No Boot Included |
| Pretravel |
15 Degrees |
| Mounting Style |
Surface |
| NEMA Enclosure Rating |
1, 12, 13, 3, 4, 4X, 6, 6P |
