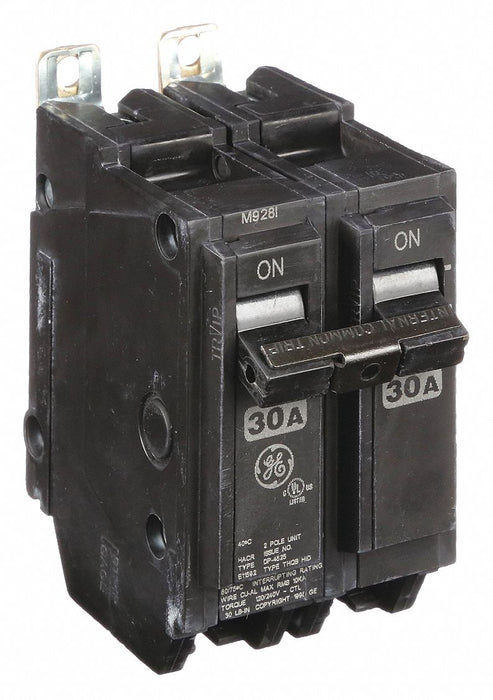

GE THQB2130HID Miniature Circuit Breaker

GE THQB2130HID Miniature Circuit Breaker, 30A, 120/240V AC, 2 Poles, 10kA, Bolt On

UPC: 078316416020 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Multiple | Shipping Weight: 0.77 lbs

$219.06 - $219.06
$219.06
$219.06 - $219.06
$219.06

Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Intensity Discharge, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series THQB, Max. AIR Rating 10kA at 120/240V AC, For Use With Lighting Panels, Load Centers, Terminal Connection Screw Clamp, Frame Size 100A/THQ, Length 3.53 in, Width 1 in, Depth 3.28 in, Min. Wire Size 12 MCM (Al), 14 MCM (Cu)

Series THQB
Amps 30A
Number of Poles 2
AC Voltage Rating 120/240V AC
Circuit Breaker Type High Interrupting
Phase 1
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 10kA at 120/240V AC
Trip Type Thermal Magnetic
Instantaneous Trip Fixed
Terminal Connection Screw
DC Voltage Rating Not Rated
Standards UL Listed
For Use With Lighting Panels, Load Centers
Voltage 120/240 VAC
Country of Origin Multiple
