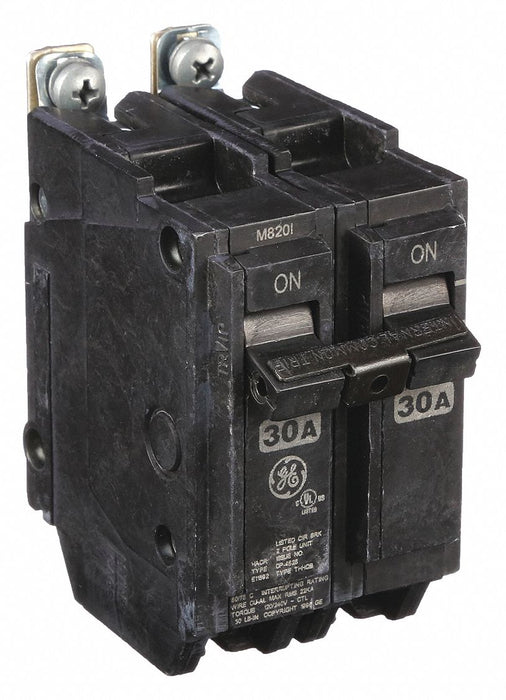

GE THHQB2130 Miniature Circuit Breaker, 30A, 120/240V AC, 2 Poles, 22kA, Bolt On

UPC: 783164118360 | Harmonization / Schedule B : 8536.20.0020

Country of Origin: Multiple | Shipping Weight: 1.00 lbs

Original price $393.43 - Original price $393.43
Original price
$393.43
$393.43 - $393.43
Current price $393.43

Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series THHQB, Max. AIR Rating 22kA at 120/240V AC, For Use With Bus Connections of Load Centers, Lighting Panels, Terminal Connection Screw Clamp, Frame Size 60A/THHQB, Length 3.28 in, Width 2 in, Depth 2.38 in, Min. Wire Size 14 AWG

Series THHQB
Amps 30A
Number of Poles 2
AC Voltage Rating 120/240V AC
Circuit Breaker Type High Interrupting
Phase 1
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Bolt On
Max. AIR Rating 22kA at 120/240V AC
Trip Type Thermal Magnetic
Instantaneous Trip Fixed
Terminal Connection Screw
DC Voltage Rating Not Rated
Standards UL Listed
For Use With Bus Connections of Load Centers, Lighting Panels
Voltage 120/240 VAC
Country of Origin Multiple
