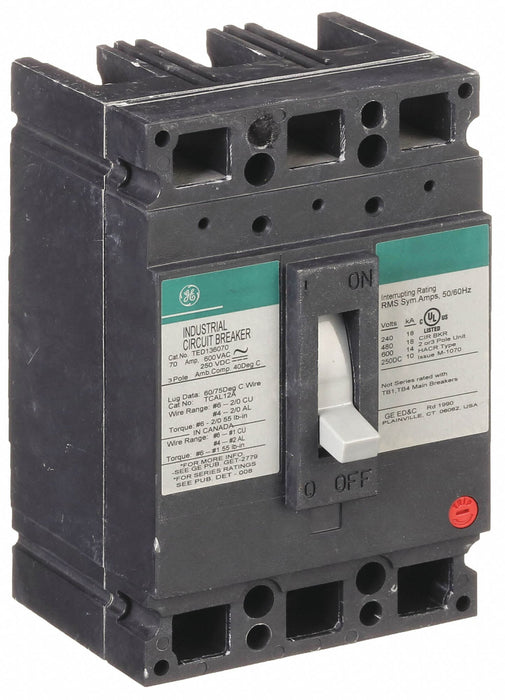

GE TED136070WL Molded Case Circuit Breaker, TED Series, 70 A, 3 Pole, 600V AC, 18kA AIR, Bolt-On, Thermal Magnetic

GE TED136070WL Molded Case Circuit Breaker, TED Series, 70 A, 3 Pole, 600V AC, 18kA AIR, Bolt-On, Thermal Magnetic

UPC: 783164063233 | Harmonization / Schedule B : 8536.20.0040

Country of Origin: United States | Shipping Weight: 4.15 lbs

$1,963.84 - $1,963.84
$1,963.84
$1,963.84 - $1,963.84
$1,963.84

GE TED-frame molded case circuit breaker, 70A, 3-pole, 600V AC. Standard type for use with GE Panelboards. Max AIR rating 18kA at 120/240/277/480V AC. DC voltage rating 125/250/500V DC. Bolt-on panelboard mounting, thermal magnetic trip, fixed instantaneous trip. CSA Certified, UL Listed.

Amps 70 A
AC Voltage Rating 600V AC
Max. AIR Rating 18kA at 120/240/277/480V AC
For Use With GE Panelboards
Circuit Breaker Type Standard
Number of Poles 3
DC Voltage Rating 125/250/500V DC
Terminal Connection Line/Load Lug
Trip Type Thermal Magnetic
Phase Three
Instantaneous Trip Fixed
Phase Connection ABC
Frame Size 150A/TED
Circuit Breaker Mounting Style Bolt On Panelboard
Height 6.31 in
Width 4.13 in
Depth 4.09 in
Min. Wire Size 4 AWG (Al); 6 AWG (Cu)
Circuit Breaker Actuator Toggle
Standards CSA Certified; UL Listed
Series TED
