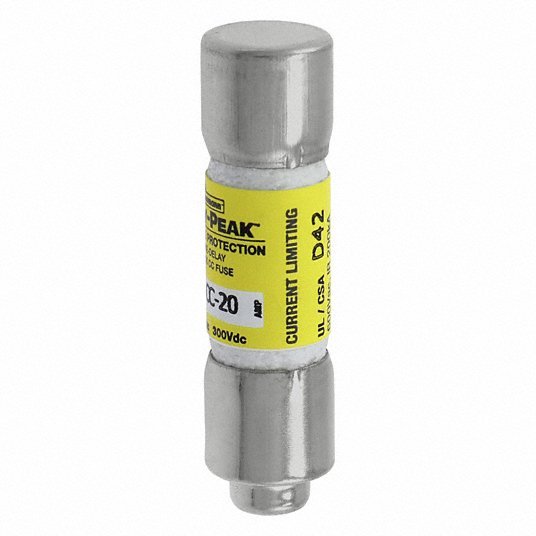

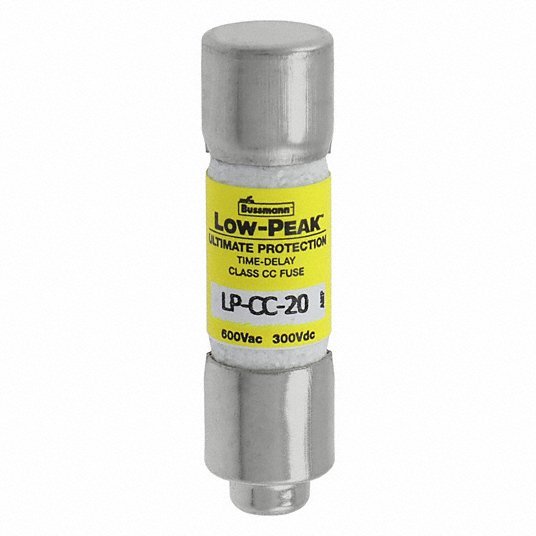

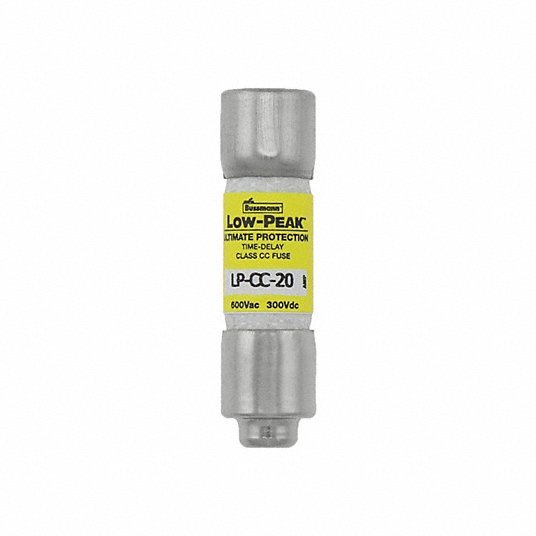

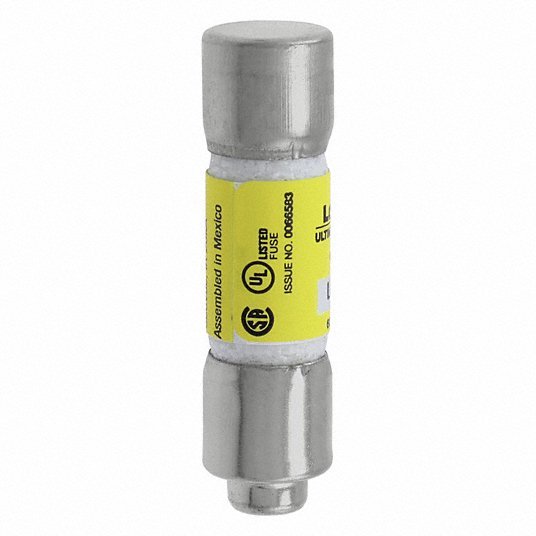

Eaton Bussmann LP-CC-20 CC Class Time Delay 20A 600V AC Non-Indicating Fuse

Eaton Bussmann LP-CC-20 CC Class Time Delay Fuse - Professional Grade Protection

Specifications:
• Class: CC
• Series: LP-CC
• Speed: Time-Delay
• Current Rating: 20 Amps
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 300V DC
• Visual Indication: Non-Indicating
• Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC
• Body Style: Cylindrical
• Body Material: Melamine
• Dimensions: 1-1/2" L x 13/32" dia
• Weight: 0.15 lb

Features:
• Dual element construction for reliable time-delay protection
• Rejection-style fuse block compatibility
• UL Listed to UL-248-4 standards
• CSA certified Class 1422-02
• CE marked for international compliance
• High interrupt ratings for superior circuit protection
• Compact cylindrical design for space-efficient installation

Applications:
• Motor circuits requiring time-delay protection
• Lighting circuits
• Control circuits
• Industrial equipment protection
• Commercial electrical systems

Compatible with BCM, BMM, CCP2-X-X-CC, CCP2-X-X-M, CHCC, CHM, HEB, HEX, HEY, HEZ fuse block series.
