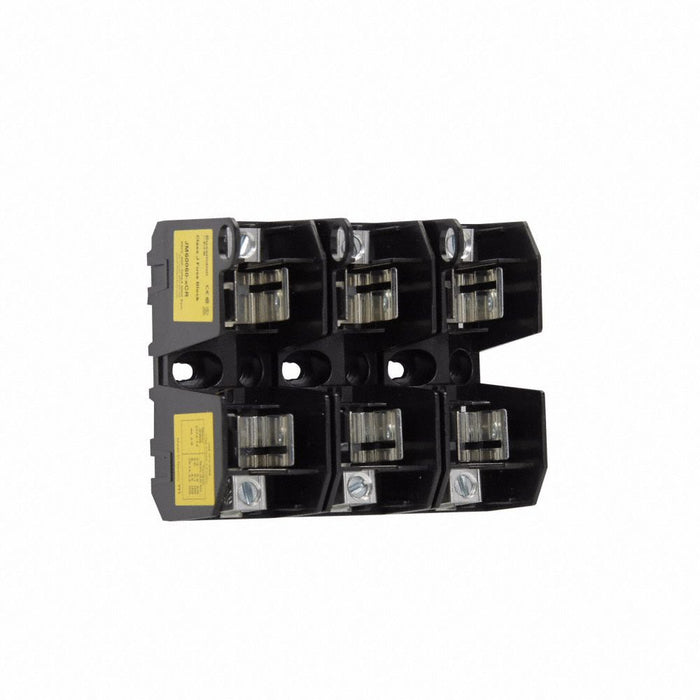

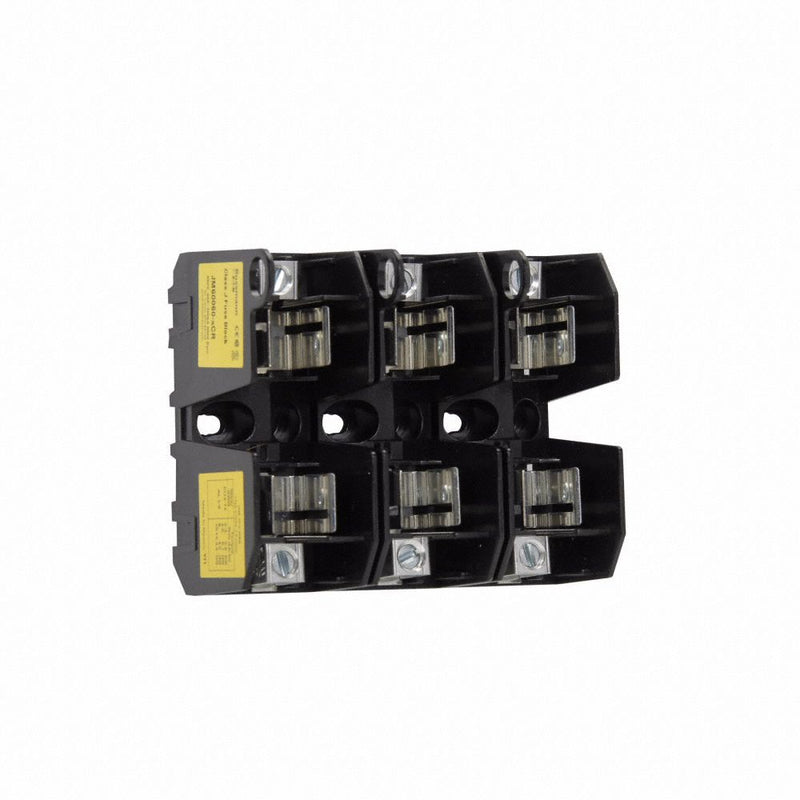

Eaton Bussmann JM60060-3CR Fuse Block

Eaton Bussmann JM60060-3CR Fuse Block, Class J, 3 Pole, 600V AC/300V DC, 31-60 A, Box Lug, Open Design

UPC: 051712514682 | Harmonization / Schedule B : 8536.90.8085

Country of Origin: Mexico | Shipping Weight: 0.52 lbs

$255.06 - $255.06
$255.06
$255.06 - $255.06
$255.06

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 31 to 60 A, Number of Poles 3, 600V AC/300V DC, For Fuse Size 2 3/8 in L x 1 1/16 in dia, Compatible Fuse Series A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I, Series JM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.6 in, Width 4.5 in, Length 3.7 in, Spring Reinforced Clip Yes

CAD Available Yes
UL Class J
Series JM
Number of Poles 3
Amp Range 35 to 60A
Voltage Rating 600V AC/DC
Connector Type Box Lug
Mounting Style Bolt-Down; DIN Rail
Visual Indication Non-Indicating
Fuse Block Style Non-Rejection
Spring Reinforced Clip Yes
Fuse Block Design Open
Body Material Thermoplastic
For Fuse Series LPJ, JKS, DFJ
Fuse Type Industrial
Standards CE, CSA Certified, REACH, RoHS, UL Listed
Fits Fuse Type Class J
Wire Range 14 AWG to 2 AWG
Short Circuit Current (KA) 200kA
Weight .1 lb
Fits Fuse Block Style Non-Rejection
DC Voltage Rating 300 V DC
Current - Minimum 31 A
AC Voltage Rating 600 V AC
Current - Maximum 60 A
Country of Origin Mexico
