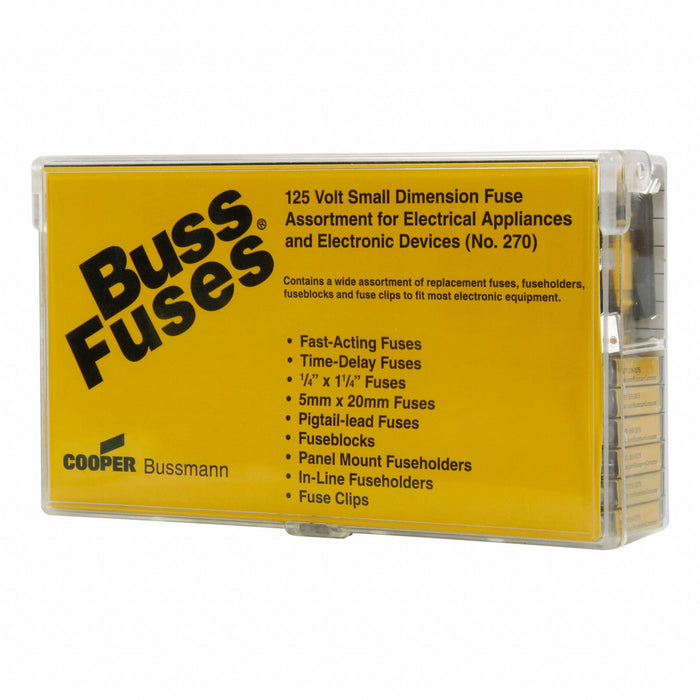

Bussmann NO.270 Glass Fuse Kit, ABC/AGC/GJV/GMA/GMC/MDA/MDL/MDV Series, 270 Fuses, 1/8 to 30 A

Bussmann NO.270 Glass Fuse Kit, ABC/AGC/GJV/GMA/GMC/MDA/MDL/MDV Series, 270 Fuses, 1/8 to 30 A

UPC: 051712138000 | Harmonization / Schedule B : 8536.10.0020

Country of Origin: United States | Shipping Weight: 4 lbs

$1,078.85 - $1,078.85
$1,078.85
$1,078.85 - $1,078.85
$1,078.85

Fuse Kit, Glass Fuse Kit, Total Number of Fuses Included 270, Fuse Series Included ABC, AGC, GJV, GMA, GMC, MDA, MDL, MDV, Fuse Class Glass, 32 V AC, 125 V AC, 250 V AC, 125 V DC, Fuse Kit Amp Range 1/8 to 30 A

Fuse Series Included ABC, AGC, GJV, GMA, GMC, MDA, MDL, MDV
Speed Fast-Acting, Time-Delay
Total Number of Fuses Included 270
Fuse Kit Amp Range 1/8 to 30A
AC Voltage Rating 125V AC, 250V AC, 32V AC
DC Voltage Rating 125V DC
Tool Included None
Visual Indication Non-Indicating
Fuse Class Glass
Body Style Cylindrical
Body Material Ceramic, Glass
Fuse Kit Contents (5) MDL 1/8, 1/4, 1/2, 3/4, 1, 1-1/2, 2, 3, 4, 5, 6; (5) MDA 8, 10, 15, 20, 30; (5) MDV 1/2, 1, 2, 3; (5) AGC 1/8, 1/4, 1/2, 3/4, 1, 1-1/2, 2, 2-1/2, 3, 4, 5, 6, 7, 8; (5) ABC 10, 15, 20, 30; (5) GMA 1/4, 1/2, 1, 2, 3, 4, 6; (5) GMC 1, 2, 3, 4, 6; (5) GJV 1/2, 1, 2, 3; (1) S-8202-2 Fuse Block; (1) HTB-26I Fuse Holder; (1) HTB-28M Fuse Holder; (2) 4121 Fuse Clips; (1) HHB Fuse Holder
Standards CSA, UL
Current - Maximum 30 A
Current - Minimum 0.125 A
Country of Origin Multiple (USA/Various)
