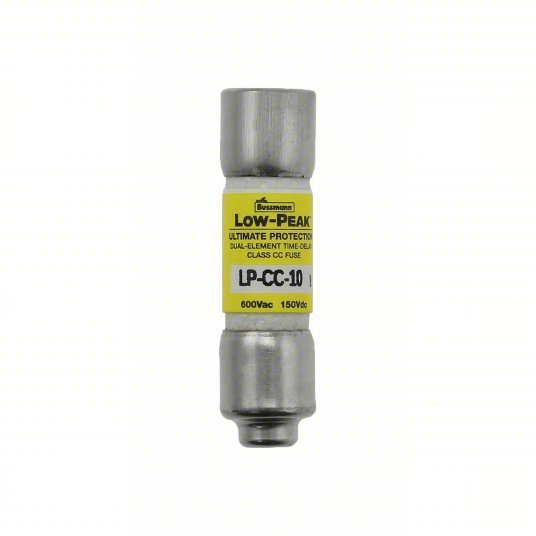

Bussmann LP-CC-10 UL Class CC Fuse Time Delay, 10 A, LP-CC, Cylindrical Body, Nonindicating, 150V DC

UL Class CC Fuse, 10 A, 600V AC, 150V DC, Class CC, LP-CC Series, Nonindicating, Time Delay, Body Style Cylindrical, Rejection, Interrupt Rating 200kA at 600V AC, 20kA at 150V DC, Fuse Size 1-1/2 in L x 13/32 in dia, Length 1 1/2 in, Diameter 13/32 in, Equivalent Brand and Series Bussmann LP-CC, Littelfuse CCMR, Mersen ATDR, Equivalent Series ATDR, CCMR, LP-CC, Compatible Fuse Block Series BC, BCM, C2617, C5268, CHCC, HPF, OPM-1038, OPM-NG, Body Material Melamine, Dual Element

Class	CC
Series	LP-CC
Speed	Time-Delay
Amps	10A
AC Voltage Rating	600V AC
DC Voltage Rating	150V DC
Visual Indication	Non-Indicating
Interrupt Rating	200kA at 600V AC, 20kA at 150V DC
Body Style	Cylindrical
Body Material	Melamine
Equivalent Brand and Series	Bussmann LP-CC, Littelfuse CCMR, Mersen ATDR
Equivalent Series	ATDR, CCMR, LP-CC
Fits Fuse Block Style	Rejection
Compatible Fuse Block Series	BC, BCM, C2617, C5268, CHCC, HPF, OPM-1038, OPM-NG
Item	UL Class Fuse
Standards	CE/UL-248-4 Guide JDDZ/CSA Class 1422-02
Element	Dual
Weight	0.15 lb
