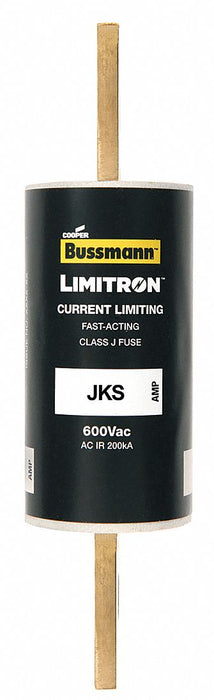

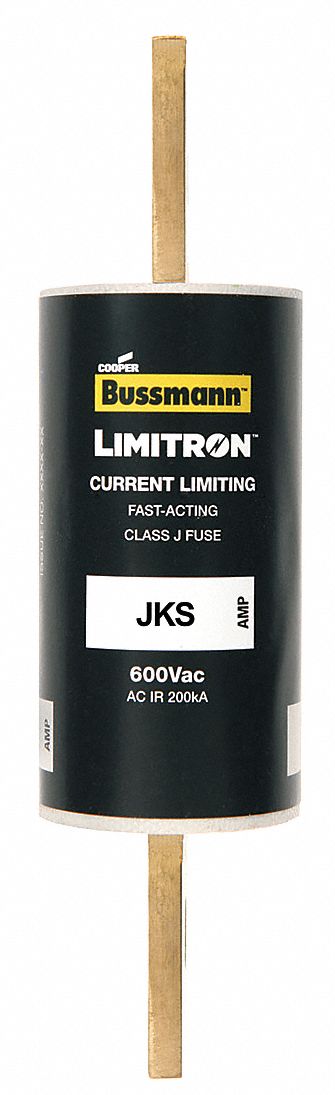

Bussmann JKS-400 Class J Fuse 400 A 600V

Bussmann JKS-400 Class J Fuse, 400 A, 600V AC, Fast-Acting, Bolt-On

UPC: 051712634007 | Harmonization / Schedule B : 8536.10.0040

Country of Origin: Mexico | Shipping Weight: 1.85 lbs

$714.37 - $714.37
$714.37
$714.37 - $714.37
$714.37

Fuse, 400 A, 600 V AC, Not Applicable, Class J, JKS Series, Non-Indicating, Fast-Acting, Body Style Bolt-On, Fits Fuse Block Style Non-Rejection, Interrupt Rating 200kA at 600V AC, Fuse Size 7-1/8 in L x 2 in dia, Length 7 1/8 in, Diameter 2 in, Equivalent Brand and Series Bussmann JKS, Littelfuse JLS, Mersen A4J, Equivalent Series A4J, JKS, JLS, Compatible Fuse Block Series JM600, Body Material Melamine, Single Element, Standards CE/UL-248-8 Guide JDDZ/CSA Class 1422-02

Class J
Series JKS
Speed Fast-Acting
Amps 400A
AC Voltage Rating 600V AC
DC Voltage Rating Not Rated
Visual Indication Non-Indicating
Interrupt Rating 200kA at 600V AC
Body Style Bolt-On
Body Material Melamine
Equivalent Brand and Series Bussmann JKS, Littelfuse JLS, Mersen A4J
Equivalent Series A4J, JKS, JLS
Fits Fuse Block Style Non-Rejection
Compatible Fuse Block Series CH30J, CH60J, J600, JM600, JM601, JM602, JM604, JM606, JP600, JT600, JTN600
Fuse Holder Code AD
Element Single
Fuse Speed Fast Acting
Rejection / Nonrejection Nonrejection
Standards CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
Weight 1.85 lb
Products By Industry Electrical
Current 400 A
Interrupt Rating - AC 200 kA
Country of Origin Mexico
