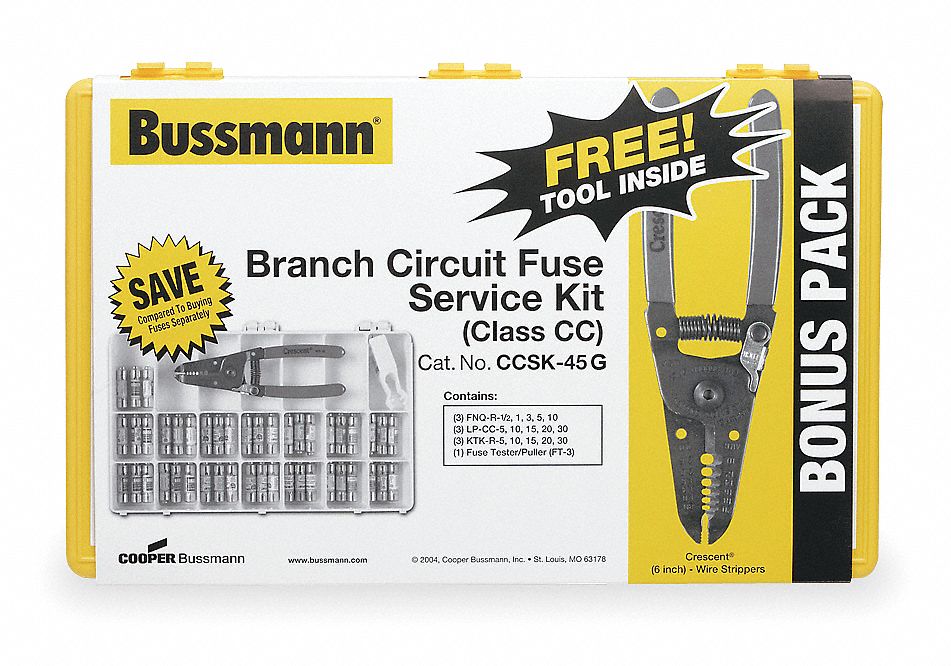

Bussmann CCSK-45 Fuse Kit, Includes Series FNQ-R/KTK-R/LP-CC, CC Fuses, 0.5 A – 30 A Range

Bussmann CCSK-45 Fuse Kit, Includes Series FNQ-R/KTK-R/LP-CC, CC Fuses, 0.5 A – 30 A Range

UPC: 051712630160 | Harmonization / Schedule B : 8536.10.0040

Country of Origin: Mexico | Shipping Weight: 1.9 lbs

$1,109.30 - $1,109.30
$1,109.30
$1,109.30 - $1,109.30
$1,109.30

UL Class & midget fuse kits include a range of fuses that meet UL standards for specific fuse classes. These kits are designed to support industrial and commercial systems by providing quick access to commonly used fuses for maintenance or replacement.

Fuse Class or Type CC
Fuse Body Style Cylindrical
Body Material Melamine
Fuse Series Included FNQ-R, KTK-R, LP-CC
Current - Minimum 0.5 A
Current - Maximum 30 A
AC Voltage Rating 600 V AC
DC Voltage Rating 150 V DC, 300 V DC
Speed Time-Delay, Fast-Acting
Total Number of Fuses Included 45
Fuses Included (3) FNQ-R 1/2, 3, 5, 10; (3) LP-CC 5, 10, 15, 20, 30; (3) KTK-R 5, 10, 15, 20, 30
Tool Included 6 in Wire Strippers, Fuse Tester/Puller
Visual Indication Non-Indicating
Standards CE, CSA Class 1422-01, 1422-02, UL-248-4 Guide JDDZ
