Burndy YA372N Compression Terminal, 650 kcmil Cu, 2 - Hole, 1/2" Stud, 1 - 3/4" Spacing, Long Barrel - KVM Tools Inc.KVYA372N

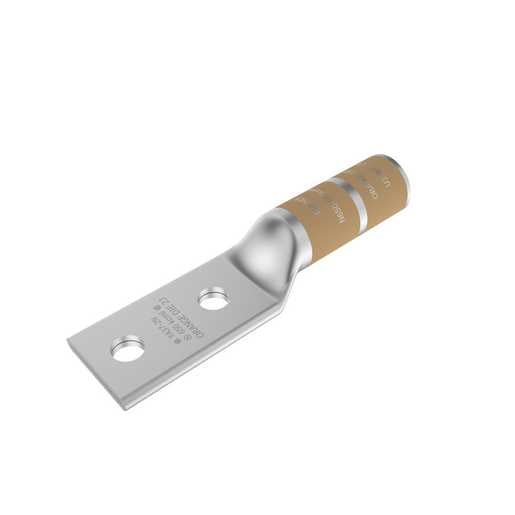

Burndy YA372N Compression Terminal, 650 kcmil Cu, 2-Hole, 1/2" Stud, 1-3/4" Spacing, Long Barrel

UPC: 781810032763 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: | Shipping Weight:

$99.49 - $99.49
$99.49
$99.49 - $99.49
$99.49

650 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Orange Color Code, 23 Die Index.

Accomodates Stranded cable, With Inspection window, Long barrel

General

Application : Wire Termination
Catalog Number: YA372N
Color Code: Orange
Connector Type: LONG BARREL
Die Index: 23
EU RoHS Indicator: Yes
Feature - Barrel Style: Chamfered
Feature - Barrel Type: Long
Finish Type: Tin-Plated
Material: COPPER
Physical Attribute - Number of Holes: 2
Plated: Y
Plating Type: Tin
Sub Brand: TERMINALS, HYLUG
Trade Name: HYLUG™
Type: Long Barrel, Tin Plated
UPC: 781810032763
UPC 12 Digit: 7818100327633

Dimensions

Dimension - B Length fraction: 2-13/16 in
Dimension - B Length inch: 2.81 in
Dimension - Bolt Hole Size inch: 0.52 in
Dimension - Bolt Size fraction: 1/2
Dimension - Bolt Size inch: 0.5
Dimension - Hole Size fraction: 1/2
Dimension - Hole Size inch: 0.56
Dimension - Hole Size mm: 14 mm
Dimension - L Length Overall mm: 171 mm
Dimension - Length Overall inch: 6.74 in
Dimension - N inch: 0.63 in
Dimension - Outside Diameter inch: 1.23 in
Dimension - Pad Width inch: 1.80 in
Dimension - Strip Length inch: 2-7/8
Dimension - Stud Size fraction: 1/2
Dimension - Stud Size inch: 1/2
Dimension - Z (inch): 0.64 in
Physical Attribute - Tongue Angle: Straight

Electrical Ratings

Voltage - Maximum: 35000
Voltage Rating: 35 kV

Conductor Related

Conductor - Copper DLO Size Range: N/A
Conductor - Copper Str Size: 650 KCMIL
Conductor - Copper Str Size Range: 650 kcmil
Conductor - Material: COPPER
Conductor Size: 650 KCMIL
Conductor Type: CODE

Certifications And Compliance

Buy American Compliant: Yes
Certification - CSA Approved: Yes
Certification - cULus: No
Certification - ETL: No
Certification - UL Recognized: No
Industry Standard(s): UL 486A-486B
Standards - Industry Standards Met: UL 486A-486B
Standards - RoHS Compliance Status: CM
UL Listed: Yes

Logistics

Carton Quantity: 20
Minimum Pack Quantity: 20
Pallet Quantity: 2100
