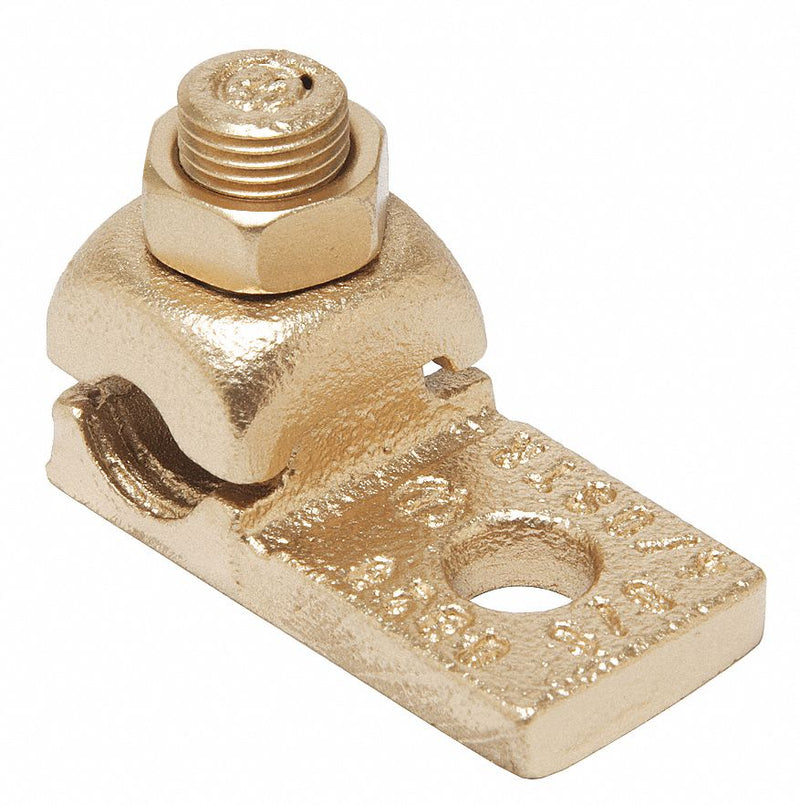

Burndy QA8CB Mechanical Lug Copper 14-8 AWG

Burndy QA8CB Mechanical Lug, Copper, 14-8 AWG, 1 Hole, #10 Stud

UPC: 781810553664 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Mexico | Shipping Weight: 0.1 lbs

$46.66 - $46.66
$46.66
$46.66 - $46.66
$46.66

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 8 AWG, For Stud Size #10, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.22 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.56 in, Tongue Width 0.56 in, Tongue Thickness 0.16 in, Connector Type Terminal

No. of Conductors 1
Number of Holes 1
Material Copper
Standards UL Listed
Body Material Copper
Head Style Hex
Maximum Voltage 600 V
For Conductor Material Copper
Contact Finish Unplated
Torque 75 in-lb
Special Features Heavy Duty, Joining A Wide Range Of Cable
Number of Conductors 1
Number of Terminations 1
Compatible with Product Type Copper Cable
Maximum Operating Temperature 194 Degrees F
Type Bolted Lugs & Terminals
Application For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars
Plating Type Unplated
Industry Standard(s) UL468A-468B
Installation Torque Recommended in-lb 75 LBS/in
Trade Name QIKLUG
Country of Origin Mexico
