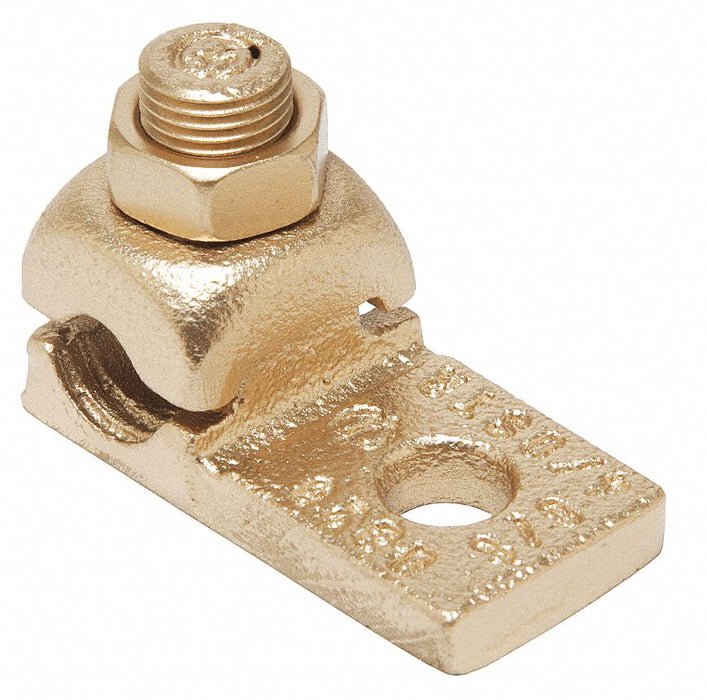

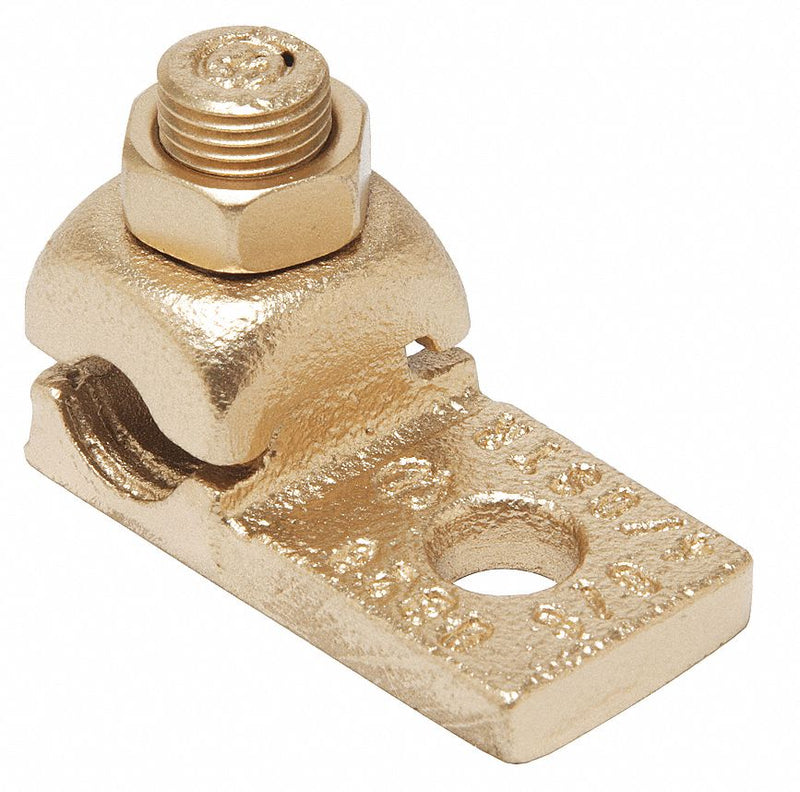

Burndy QA26B Mechanical Wire Lug 1/0-2/0 AWG

Burndy QA26B Mechanical Wire Lug, 1/0-2/0 AWG, 3/8 in Stud, Unplated Copper

UPC: 781810553619 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Mexico | Shipping Weight: 0.3 lbs

$161.64 - $161.64
$161.64
$161.64 - $161.64
$161.64

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.41 in, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.94 in, Tongue Width 0.81 in, Tongue Thickness 0.22 in, Connector Type Terminal

No. of Conductors 1
Number of Holes 1
Material Copper
Standards UL Listed
Head Style Hex
Body Material Copper
Maximum Voltage 600 V
Torque 180 in-lb
For Conductor Material Copper
Contact Finish Unplated
Special Features Fast Onewrench Installation, Heavy Duty, Joining A Wide Range Of Cable
Compatible with Product Type Cable
Number of Terminations 1
Maximum Operating Temperature 194 Degrees F
Type Bolted Lugs & Terminals
Trade Name QIKLUG
Plating Type Unplated
UL Listed Yes
Industry Standard(s) UL468A-468B
Application For Joining A Wide Range Of Cable To Equipment Pads Or Bar
Country of Origin Mexico
