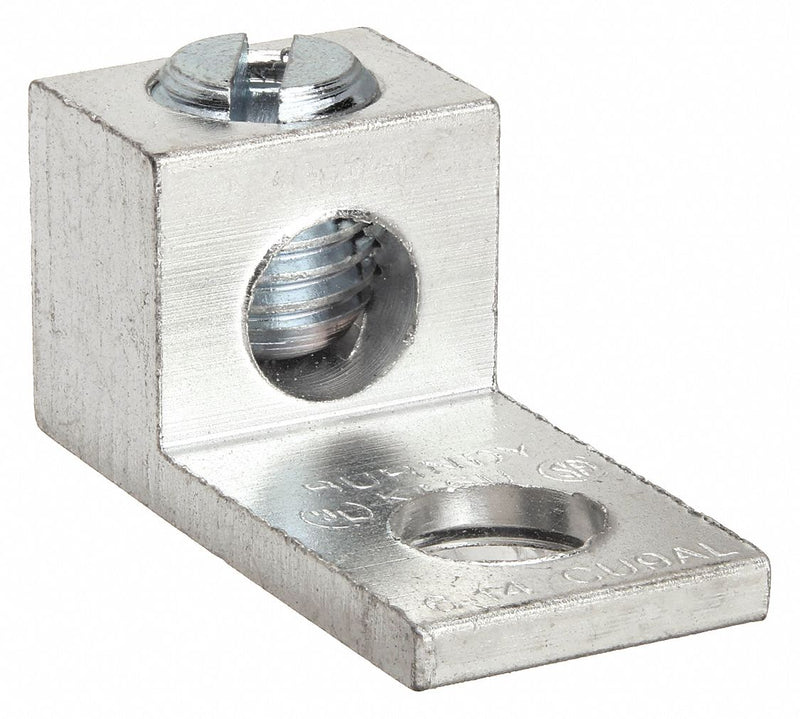

Burndy KA6U Mechanical Connector, For Wire Size 14 AWG – 6 AWG, 1 Wire Terminations, For Stud Size 1/4 in

Burndy KA6U Mechanical Connector, For Wire Size 14 AWG – 6 AWG, 1 Wire Terminations, For Stud Size 1/4 in

UPC: 781810559079 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Mexico | Shipping Weight: 0.01 lbs

$3.28 - $3.28
$3.28
$3.28 - $3.28
$3.28

Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.27 in, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.63 in, Tongue Width 0.5 in, Tongue Thickness 0.09 in

For Minimum Wire Size 14 AWG
For Maximum Wire Size 6 AWG
For Stud Size 1/4 in
Hole Diameter 0.27 in
Tongue Width 0.50 in
Length 1.06 in
Max. Conductor Size 6 AWG Stranded
Min. Conductor Size 14 AWG Stranded
Stud Size 1/4 in
Width 0.51 in
Length (Straight Wireway) 1.06 in
Overall Depth 1/2 in
Overall Length 1.06 in
For Stranded Copper Wire Size - Maximum 6 AWG
Overall Width 0.51 in
Tongue Length 0.63 in
For Stranded Copper Wire Size - Minimum 14 AWG
Tongue Thickness 0.09 in
Conductor Size 14-6 AWG
Dimension - Bolt Size fraction 2023-01-04
Conductor - Copper Str Size Range 14 AWG-6 AWG
Dimension - Stud Size inch 44930
Dimension - Bolt Hole Size inch 0.25 in
Dimension - Length Overall inch 1.06 in
Dimension - Width inch 0.50 in
Dimension - Hole Size mm 7 mm
Dimension - Height inch 0.51 in
Dimension - Hole Size inch 0.27 in
Dimension - L Length Overall mm 27 mm
Conductor - AL Str Size Range 8 AWG-6 AWG
Conductor - Copper Str Size 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG
Dimension - D inch 0.63 in
Dimension - Width fraction 1/2 in
Dimension - N inch 0.25 in
Dimension - Width mm 13 mm
Conductor - AL Str Size 8 AWG;6 AWG
Conductor - Nominal Diameter 0.072, 0.091, 0.116, 0.130, 0.146, 0.164, 0.184, 0.184, 0.184
Dimension - Pad Width inch 0.50 in
Wire Rope Length 1.06 in
Connector Type Lug
For Conductor Material Aluminum, Copper
Number of Conductors 1
Number of Terminations 1
Number of Holes 1
Body Material Aluminum
Contact Finish Tin
Maximum Voltage 600 V
Maximum Operating Temperature 194 Degrees F
Standards CSA Certified, UL Listed
No. of Conductors 1
Material Tin-Plated Aluminum
Head Style Slotted
Compatible with Product Type Aluminum Cable, Copper Cable
Special Features Providing Low Contact Resistance
Torque 35 in-lb
Type Bolted Lugs & Terminals
Physical Attribute - Number of Holes 1
Industry Standard(s) UL468A-468B
Plating Type Tin
Plated Y
UL Listed Yes
Application For Aluminum And Copper Conductors
Installation Torque Recommended in-lb 35
Certification - CSA Approved No
Physical Attribute - Screw Type Slot
Certification - UL Listed Direct Burial No
Material - Hardware Steel
Conductor Type CU C Str-SizeCU C Solid-Size
Physical Attribute - Number of Screws 1
Rating - Minimum Voltage 600
CAD Available Yes
Connection Orientation Dual Rated Lug
Country of Origin Mexico
