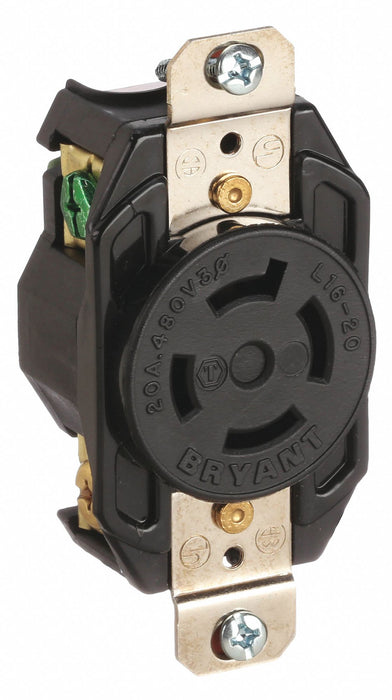

Bryant 71620FR Locking Receptacle, L16-20R, 1 Outlet, Black, 480V AC, 20 A, 3 Poles

Bryant 71620FR Locking Receptacle, L16-20R, 1 Outlet, Black, 480V AC, 20 A, 3 Poles

UPC: 781786696839 | Harmonization / Schedule B : 8536.69.8000

Country of Origin: United States | Shipping Weight: 0.27 lbs

$44.16 - $44.16
$44.16
$44.16 - $44.16
$44.16

Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L16-20R, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded

Maximum Wire Size 8 AWG
Minimum Wire Size 14 AWG
Wire Size #14 AWG to #8 AWG
Width 1.70 in
Height 0.98 in
Length 3.28 in
NEMA Receptacle Configuration L16-20R
Current Rating 20 A
Voltage Rating 480V AC
Phase Three
Number of Poles 3
Number of Wires 4
Wire Connection Type Screw Terminals
Shrouded No
Grounding Grounded
Housing Color Black
Mount Type Flush
Cover Type No Cover
Standards UL 498
Resistance Properties Corrosion Resistant
Flange Type Non-Flanged
Mounting Type Flush Mount
Wiring Style Standard
Material Nylon
Grade Industrial
Polarized Yes
Includes Mounting Hardware Yes
For Location Indoor
Housing Material Nylon
Contact Material Copper Alloy
For Environment Dry
Market Industrial
Horsepower Rating 5 hp
Includes Mounting Hardware
Style Single Receptacle
Amperage Rating 20 A
Features Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Application Extra Heavy Duty Industrial Specification Grade
Material - Mounting Hardware Screw Mounting
Amps 20
Country of Origin United States
