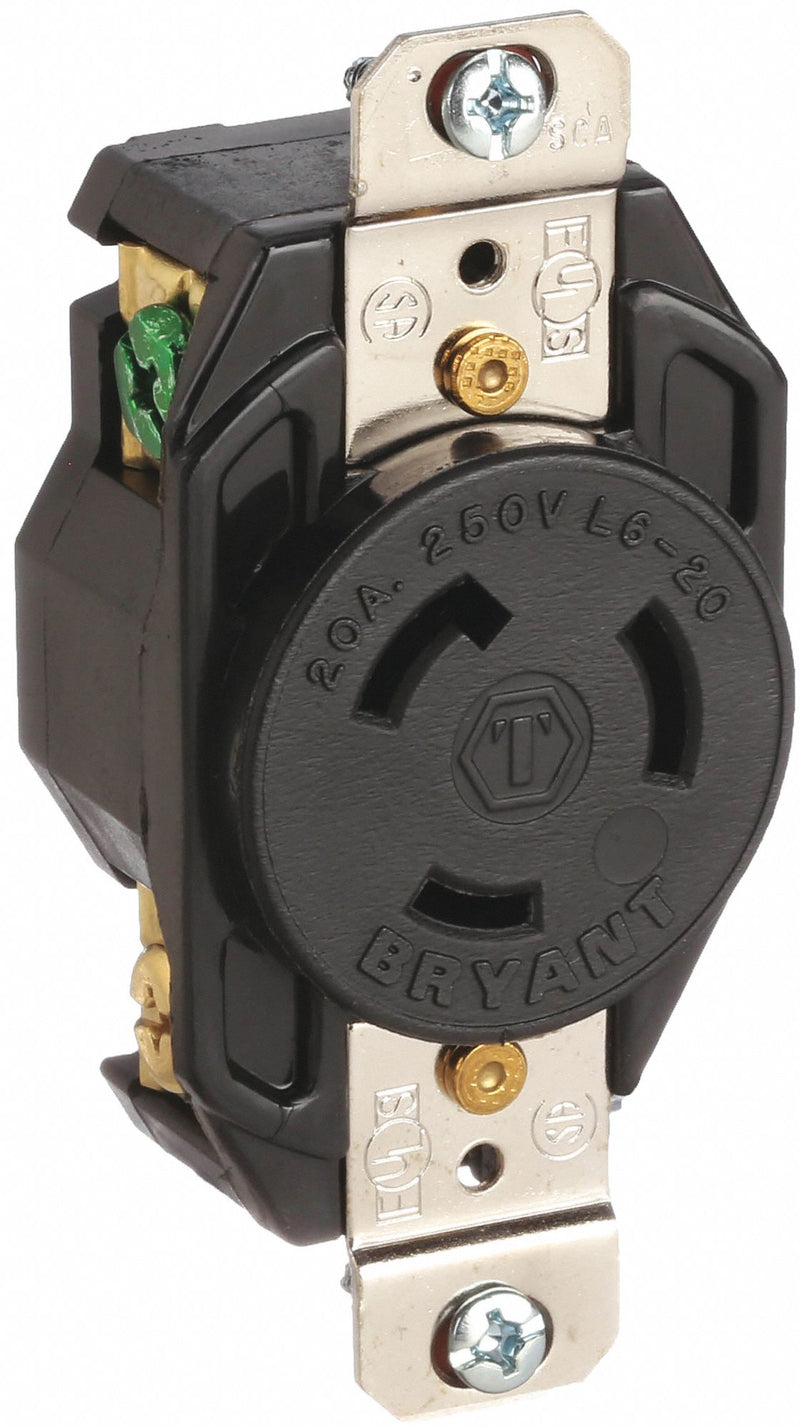

Bryant 70620FR Locking Receptacle, L6-20R, 1 Outlet, Black, 250V AC, 20 A, 2 Poles

Bryant 70620FR Locking Receptacle, L6-20R, 1 Outlet, Black, 250V AC, 20 A, 2 Poles

UPC: 781786689237 | Harmonization / Schedule B : 8536.69.8000

Country of Origin: United States | Shipping Weight: 0.25 lbs

$26.69 - $26.69
$26.69
$26.69 - $26.69
$26.69

Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded

Maximum Wire Size 8 AWG
Minimum Wire Size 14 AWG
Wire Size #14 AWG to #8 AWG
Length 3.28 in
Width 1.70 in
Height 1.24 in
Mount Hole Center-to-Center Height 3.28 in
For Minimum Cable Diameter 0.3 in
For Maximum Cable Diameter 0.655 in
NEMA Receptacle Configuration L6-20R
Current Rating 20 A
Voltage Rating 250V AC
Phase Single
Number of Poles 2
Number of Wires 3
Wire Connection Type Screw Terminals
Grounding Grounded
Housing Color Black
Mount Type Flush
Cover Type No Cover
Flange Type Non-Flanged
Standards UL 498
Resistance Properties Corrosion Resistant
Mounting Type Flush Mount
Wiring Style Standard
Grade Industrial
Material Nylon
Includes Mounting Hardware
For Location Indoor
Shrouded No
Housing Material Nylon
Polarized Yes
For Environment Dry
Horsepower Rating 2 hp
Includes Mounting Hardware Yes
Market Industrial
Contact Material Copper Alloy
Style Single Receptacle
Features Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Material - Mounting Hardware Screw Mounting
Application Extra Heavy Duty Industrial Specification Grade
Amperage Rating 20 A
Amps 20
Number of Outlets 1
Flange Material Composite
Hub Type Dead End
Midget Locking No
Connection Orientation Straight
NEMA Enclosure Rating Not Rated
IP Rating Not Rated
Series Twist Lock
Number of Gangs 3
Country of Origin United States
