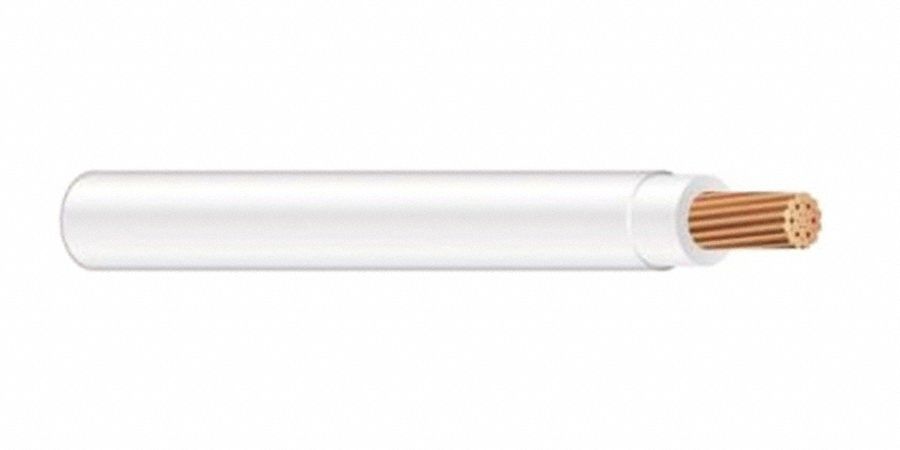

Approved Vendor THHN Building Wire 12 AWG White 1000 ft

Approved Vendor WXP-6G-1201-01-1000 Building Wire, THHN/THWN-2, 12 AWG, Stranded Copper, White, 1000 ft

UPC: | Harmonization / Schedule B : 8544.49.9000

Country of Origin: United States | Shipping Weight: 25 lbs

$387.95 - $387.95
$387.95
$387.95 - $387.95
$387.95

Building Wire, Trade Designation THHN, THWN-2, Conductor Design Stranded, Number of Conductors 1, Conductor Material Copper, Wire Color White, Voltage 600 V, Temperature Rating 194 Degrees F, Packaged on a 1,000 ft Spool

Trade Designation THHN, THWN-2
Conductor Material Copper
Number of Conductors 1C
Wire Color White
Conductor Design Stranded
Insulation Material Nylon, PVC
Voltage 600V
Temp. Rating 194 Degrees F
Standards UL Listed
Application Building Lighting, Machine Tool Wiring, Power Control Circuits, Building Power, Relay Panels
Number of Strands 19
Fire Resistance Rating Not Rated
Ampacity at Maximum Temperature 30 A
Packaging Spool
Conductor Insulation Color White
Country of Origin United States
