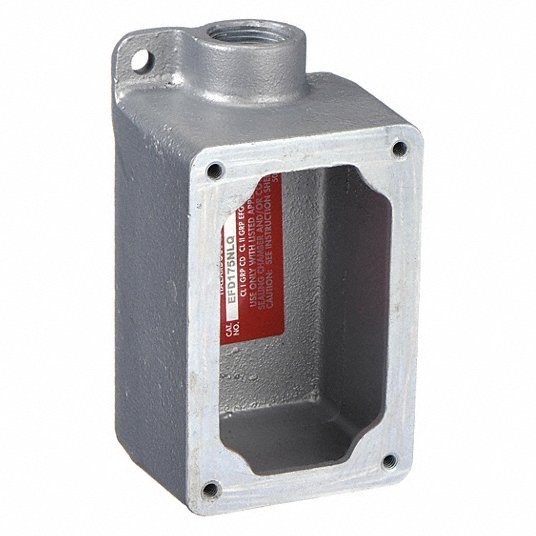

Appleton EFD175-NL-Q Mounting Body 1 Gangs, Iron, 3/4 in Hub Size, Dead End, 6 1/8 in Overall Ht

Mounting Body, Box Type 1-Gang, Number of Gangs 1, Bracket Type Lugs, Capacity Not Applicable, Material Iron, Clamp Type Clamp Not Included, Color Gray, Standards cULus Listed E10449, cULus Listed E81751, UL 1203, UL 508, UL 698

Box Type	Mounting
Number of Gangs	1 Gang
Material	Malleable Iron
Box Shape	Rectangular
Color	Gray
Hub Style	Dead-end
Standards	UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Includes	Internal Ground Screw
Clamp Type	Clamp Not Included
Bracket Type	Lugs
Nameplate Mounting Bracket	Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
Modified Operation Three Position Selector Switches	Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details
For Construction Type	New Construction, Remodel
Number of 3/4 in Back Knockouts	0
Number of 1/2 in Side Knockouts	0
Number of 1 in Side Knockouts	0
NEMA Enclosure Rating	3, 7CD, 9EFG
Ceiling Fan Rated	Not Rated
Number of 3/4 in Side Knockouts	0
Number of 1/2 in Back Knockouts	0
Hazardous Location Specification	Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Hub Type	Dead End
