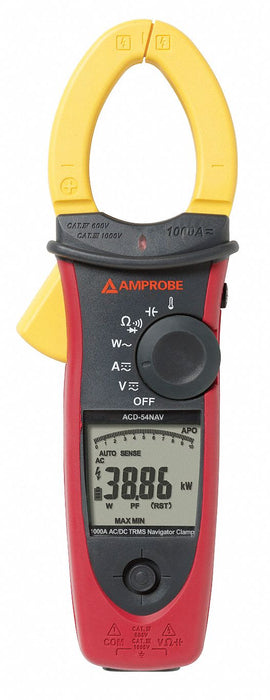

Amprobe ACDC-54NAV Clamp-On Power Meter, 1,000 kW, 1,000 A, CAT IV, 10,000 Counts, LCD

Amprobe ACDC-54NAV Clamp-On Power Meter, 1,000 kW, 1,000 A, CAT IV, 10,000 Counts, LCD

UPC: 095969556675 | Harmonization / Schedule B : 9030.33.3800

Country of Origin: Taiwan | Shipping Weight: 3.22 lbs

$1,007.98 - $1,007.98
$1,007.98
$1,007.98 - $1,007.98
$1,007.98

Clamp On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Certificate Included Traceable without Data, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Data Logging No, Display Type Backlit LCD

Max. Watts 1,000 kW
Max. AC Amps 1,000
Max. DC Volts 1,000
Temp. Range -50 Degrees to 1832 Degrees F (-50 Degrees to 1000 Degrees C)
Safety Rating CAT IV
Power Source AA Batteries
Display LCD
Jaw Opening 1.6 in
Max. DC Amps 1,000
Max. AC Volts 1,000
Voltage Accuracy AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy +/-1.5% Rdg +5 Digits
Calibration Frequency 20 Hz to 10 KHz
Thermometer Type K-Type
Max. Resistance 100 K Ohms
Peak Capture Yes
True RMS Yes
Includes Banana K-Type Thermocouple, Carrying Case, Test Leads
Special Features Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety
Counts 10,000
Operating Temp. Range 32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
Power Factor -1.00 to 1.00
Power Accuracy +/-2.5% Rdg +5 Digits
