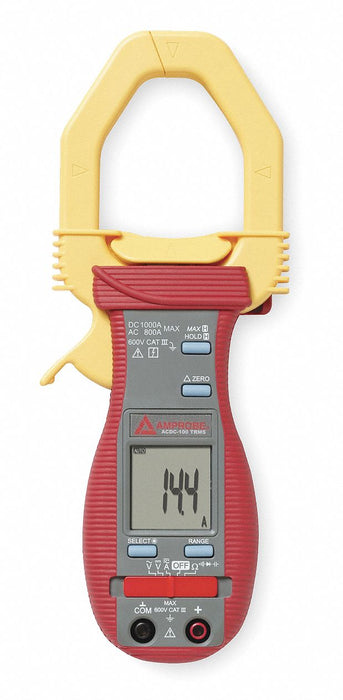

Amprobe ACDC-100 TRMS Digital Clamp Meter, 800 A, CAT III 600V, 2 in Jaw, Backlit

Amprobe ACDC-100 TRMS Digital Clamp Meter, 800 A, CAT III 600V, 2 in Jaw, Backlit

UPC: 095969780780 | Harmonization / Schedule B : 9030.33.3800

Country of Origin: Taiwan | Shipping Weight: 1.4 lbs

$358.69 - $358.69
$358.69
$358.69 - $358.69
$358.69

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 800 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Inrush Current, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No

Digital/Analog Digital
Max. AC Amps 800
Clamp Meter Jaw Style Clamp On
Max. DC Volts 600 V
Max. Ohms 40
Jaw Capacity 2.0 in (51 mm)
Safety Rating CAT III 600V
Display Backlit
Jaw Opening 2 in
Max. DC Amps 1,000
Max. AC Volts 600 V
Calibration Frequency 40 to 100 Hz
Auto Power Off Yes
Counts 4,000
Battery Type AAA
Auto Ranging Yes
Data Hold Yes
Special Features Continuity Beeper Quickly Identifies Shorts and Opens, Max Capture Function Measures Inrush Current (30 Ms Response), Relative Zero Mode Displays the Difference Between the Actual Reading and A Stored Reference Value and May be used with Any Function or Range, Rubber Over-Molded Case Absorbs Shock and Provides Built-In Probe Storage, True-RMS
Operating Temp. 32 Degrees to 104 Degrees F
AC Current Accuracy +/-2.0% + 5 Digits
Includes ACDC-100 TRMS, Deluxe Carrying Case, Test Leads
AC Response TRMS
Diode Test Yes
Capacitance 3,000
Audible Continuity Yes
Peak Hold Yes
Data Logging Yes
