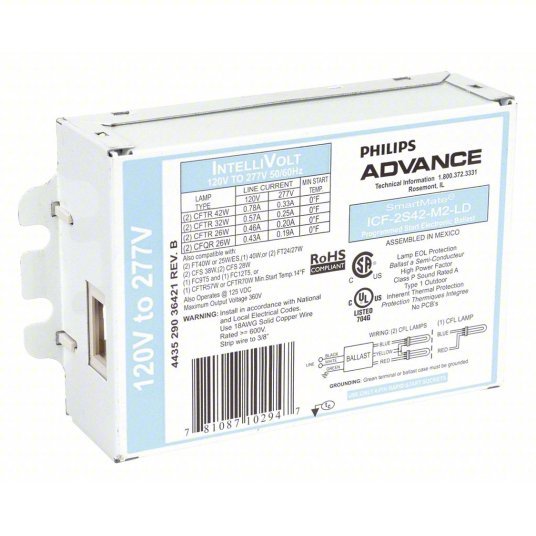

Advance ICF - 2S42 - M2 - LD - K CFL Ballast 120 to 277V AC, 1/2 Lamps Supported, 26 W_28 W_32 W_38 W_42 W Bulb Watt - KVM Tools Inc.KV5YG67

Advance ICF-2S42-M2-LD-K CFL Ballast 120 to 277V AC, 1/2 Lamps Supported, 26 W_28 W_32 W_38 W_42 W Bulb Watt

UPC: 781087102947 | Harmonization / Schedule B : 8504.10.0000

Country of Origin: Mexico | Shipping Weight: 1.05 lbs

$55.78 - $55.78
$55.78
$55.78 - $55.78
$55.78

SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, Max. Bulb Watts 26 W, 28 W, 32 W, 38 W, 42 W, Ballast Bulb Type PL-T, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F

Ballast Item CFL Ballast
Ballast Type Electronic
Ballast Lamp Type Compact Fluorescent
Ballast Max. Lamp Watts 70
Ballast Voltage 120-277
Ballast Max. Number of Lamps 2
Ballast Start Type Rapid
Ballast Dimming No
Ballast Dimming Type No Dimming
Input Watts 93W
Light Output Normal
Min. Starting Temp. 0 Degrees F
Base Type 4 Pin
Special Features Dual Connector
Ballast Family SmartMate(R)
Ballast Lamp Watts 70
Number of F382D/4P Lamps 2
Item CFL Ballast
Number of F42BX Lamps 2
Number of F32BX Lamps 2
Number of F26DBX Lamps 2
Number of F282D/4P Lamps 2
Number of F282D Lamps 2
Ballast Factor 0.97
Power Factor 0.98
Wiring Type Series
Total Harmonic Distortion 10 %
Fixture Ballast Type Electronic
Ballast Bulb Type PL-T
Standards CSA Certificate, RoHS Compliant, UL Certificate
Dimming Type No Dimming
Number of Bulbs Supported 2
Starter Required No
Dimming Range No Dimming
Bulb Base Type 4-Pin (GX24q), (PL-T)
Includes Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool
Operating Amps @ 120V 0.33 A, 0.78 A
Dimming Method No Dimming
Max. Bulb Watts 26 W, 28 W, 32 W, 38 W, 42 W
Max. Operating Temp. 158 Degrees F
Thermal Protection No
Input Voltage 120 to 277V AC
Frequency 50/60 Hz
Brand and Series SmartMate(R)
Dimming No
Voltage 120/277
Lamp Types Supported (1 or 2) CFTR42, (1 or 2) F42TBX781087102947
