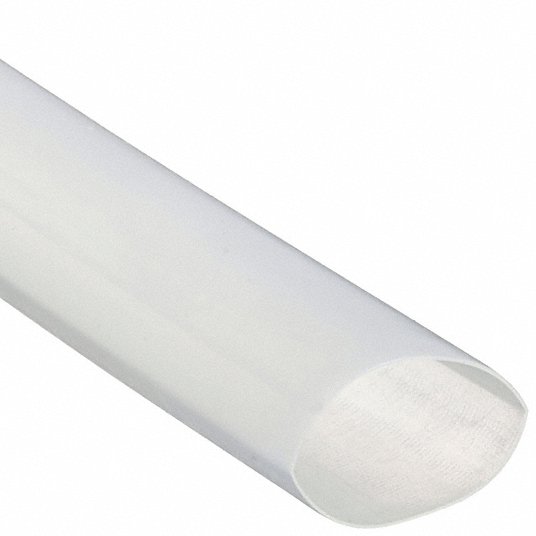

3M FP301-3/4-48"-CLEAR-50 PCS Heat Shrink Tubing 0.75 in I.D. Before Shrinking, 0.38 in I.D. After Shrinking, 4 ft Lg, 50 PK

UPC: | Harmonization / Schedule B : 3926.90.9988

Country of Origin: United States | Shipping Weight: 4.8 lbs

Original price $354.79 - Original price $354.79
Original price
$354.79
$354.79 - $354.79
Current price $354.79
Heat Shrink Tubing, Thin Wall, Material Polyolefin, Flexible, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 4 AWG to 3/0 AWG, I.D. Before Shrinking 0.75 in, I.D. After Shrinking 0.38 in, Wall Thickness After Shrinking 0.03 in, Length 4 ft, Shrink Tubing Properties Acid and Alkali Resistant, Solvent Resistant, Color Clear, Temp. Range -67 Degrees to 275 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 250 Degrees F, Dielectric Strength 600 V
Shrink Ratio 2:1
Wall Type Thin Wall
Shrink Tubing I.D. Before Shrinking 3/4 in
Shrink Tubing I.D. After Shrinking 0.38 in
Material Polyolefin
Color Clear
Temp. Range -67° to 275°F
Min. Shrink Temp. 250°F
Shrink Tubing Material Type Flexible
Features Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections
Standards CSA Certified, RoHS 2011/65/EU, SAE AS23053/5, Class 1, UL E39100
Max. Voltage 600 V
Flame Retardant Yes
Tubing Wall Type Thin Wall
Adhesive Lined No
Dielectric Strength 600 V
Package Style Individual Pieces
Min. Temp. Rating -67 Degrees F
Shrink Tubing Properties Acid and Alkali Resistant, Solvent Resistant
Max. Temp. Rating 275 Degrees F
I.D. After Shrinking 0.38 in
I.D. Before Shrinking 0.75 in
Shrink Tube Material Type Flexible
