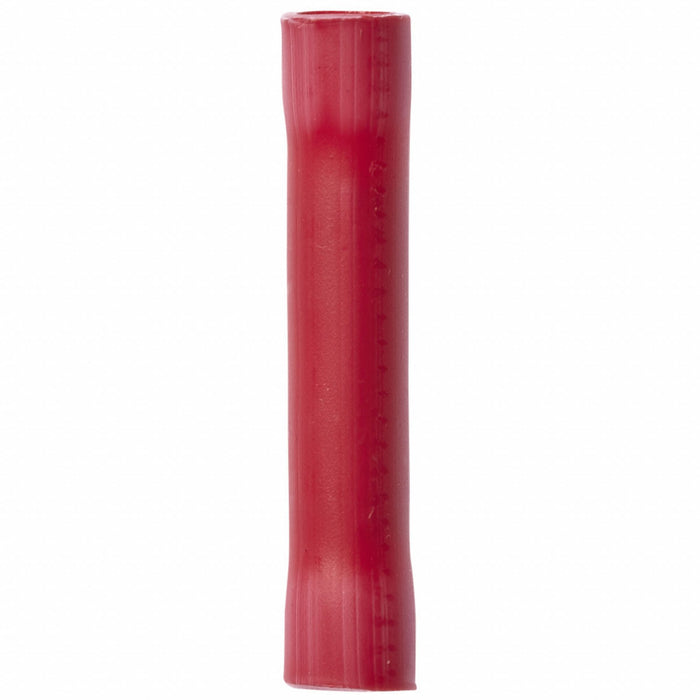

3M BSV18Q Butt Splice Connector, Red, Vinyl, For Wire Size 22 AWG - 18 AWG, 600 V, Pack Qty 25

3M BSV18Q Butt Splice Connector, Red, Vinyl, For Wire Size 22 AWG - 18 AWG, 600 V, Pack Qty 25

UPC: 051128599980 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.083 lbs

$18.09 - $18.09
$18.09
$18.09 - $18.09
$18.09

Butt Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA Certified, UL Listed, Termination Style Crimp, Contact Material Copper, Overall Length 1 in, RoHS Compliant Yes, Seam Style Butted, Barrel Inside Diameter 0.145 in

Type Butt Splice
Color Red
Insulation Material Vinyl
Maximum Voltage 600 V
Minimum Operating Temperature -40 Degrees C
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Standards CSA Certified, UL Listed
Material Electrolytic Copper
Compatible Installation Tool Model Number TH-440, TH-450, TR-490
Seam Style Butted
Barrel Style Butted Seam
Max. Number of Cores 411
Finish Tin Plated
Termination Style Crimp
Maximum Conductors 411
Country of Origin United States
