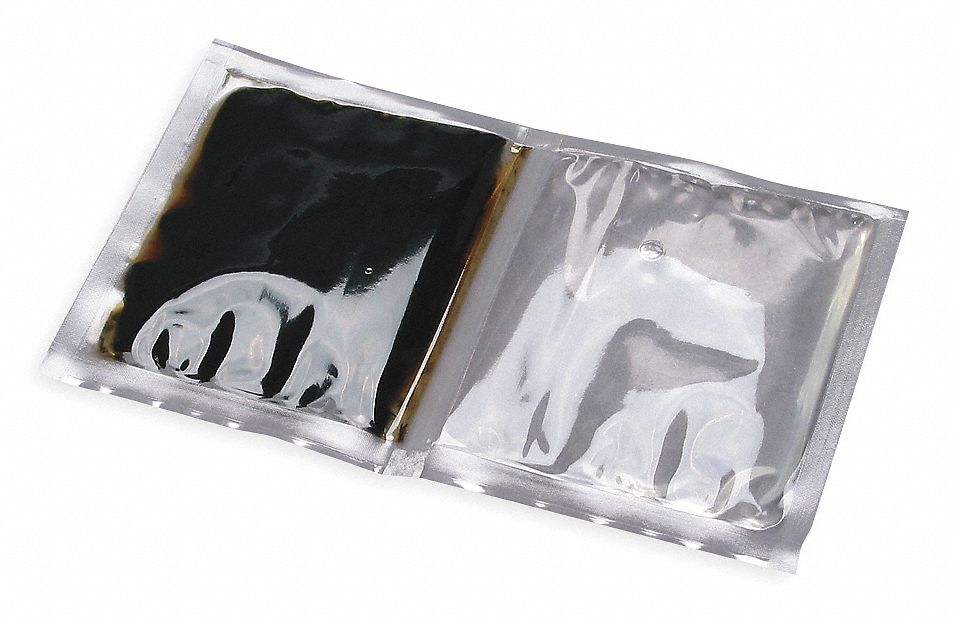

3M 72-N4 Cable Splice Kit 1000 V

3M 72-N4 Cable Splice Kit, 1000 V, 22 AWG to 10 AWG, Resin, Black

UPC: | Harmonization / Schedule B : 3909.50.5000

Country of Origin: United States | Shipping Weight: 1 lbs

$567.69 - $567.69
$567.69
$567.69 - $567.69
$567.69

Splice Kit, Body Material Polypropylene, Color Black, Compatible with Product Type Signal and Control Cables, Container Type Closed Mixing Pouch, For Maximum Cable OD 2 in, For Wire Type Signal and Control Cables, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 10 AWG

Type Splice
Color Black
Insulation Material EPDM Rubber
Maximum Voltage 1,000 V
Maximum Operating Temperature 194 Degrees F
RoHS Compliant Yes
Material Resin with Plastic EPDM Rubber Mold
Includes (1) Top Cap Cover, 2-Part Trans Mold Body, Bonding Jumper Wire with Clips, Instruction Sheet, Nonconductive Abrasive Cloth, Resin Compound, Rubber-Splicing Tape 23
Standards RoHS 2011/65/EU Compliant
Container Type Closed Mixing Pouch
For Maximum Cable OD 2 in
Compatible with Product Type Signal and Control Cables
Number of Splices 1
Resin Material Resin
Tensile Strength 600 psi
Seam Style Butted
For Wire Type Signal and Control Cables
Resistance Properties Moisture-Resistant
Number of Pieces 6
Country of Origin United States
