3M 59178 Cold Shrink Cable Splice Kit 15 kV

3M 59178 Cold Shrink Cable Splice Kit, 15 kV, 4 AWG to 3/0 AWG, Black

UPC: | Harmonization / Schedule B : 8546.90.0000

Country of Origin: United States | Shipping Weight: 12 lbs

$2,313.22 - $2,313.22
$2,313.22
$2,313.22 - $2,313.22
$2,313.22

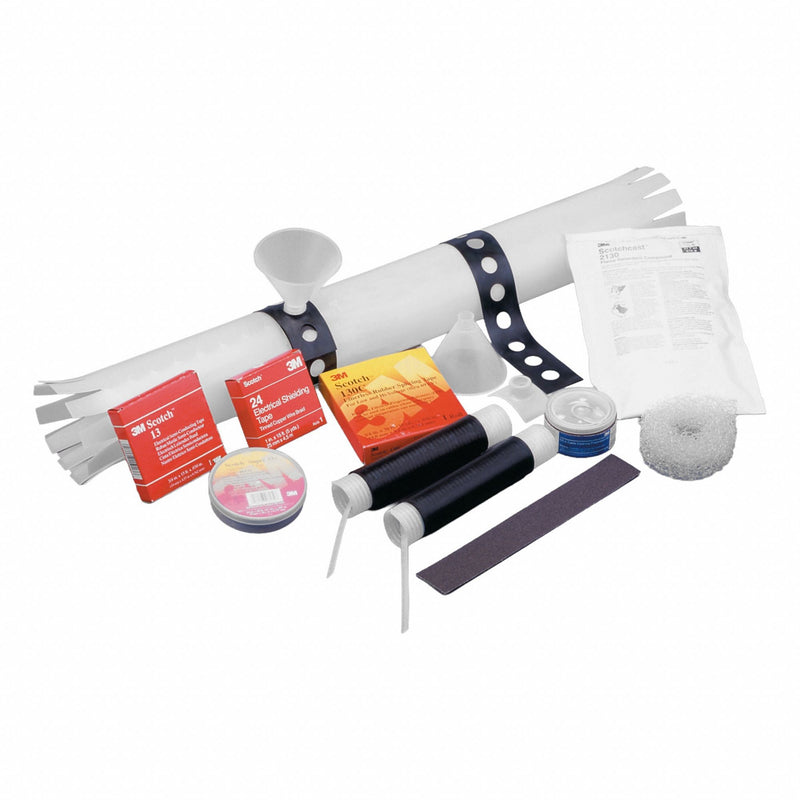

Cold shrink splice kits contain combinations of items that help users protect spliced connections using cold shrink sleeves. These sleeves start stretched over a temporary tube placed around the wires to be joined and pulled out, while the shrink sleeve remains. This 3M kit splices 15 kV power cable with conductors from 4 AWG to 3/0 AWG and includes funnels, spacer webs, EPDM rubber cold-shrink insulator assemblies, Scotchcast flame-retardant compound, and a full set of Scotch electrical tapes.

Color Black
Maximum Voltage 15 kV
Minimum Wire Size 4 AWG
Maximum Wire Size 3/0 AWG
Maximum Conductors 3
For Conductor Material Aluminum; Copper
For Conductor Type MPF MPF-GC SHD-GC
Compatible with Product Type Draglines; Drills; Power Shovels; Type MPF Underground Power Feeder Cables
Maximum Cable Outside Diameter 4 in
Insulation Material Rubber
Material EPDM Rubber
Direct Burial Rated No
Number of Pieces 1
Standards RoHS 2011/65/EU
Country of Origin United States
