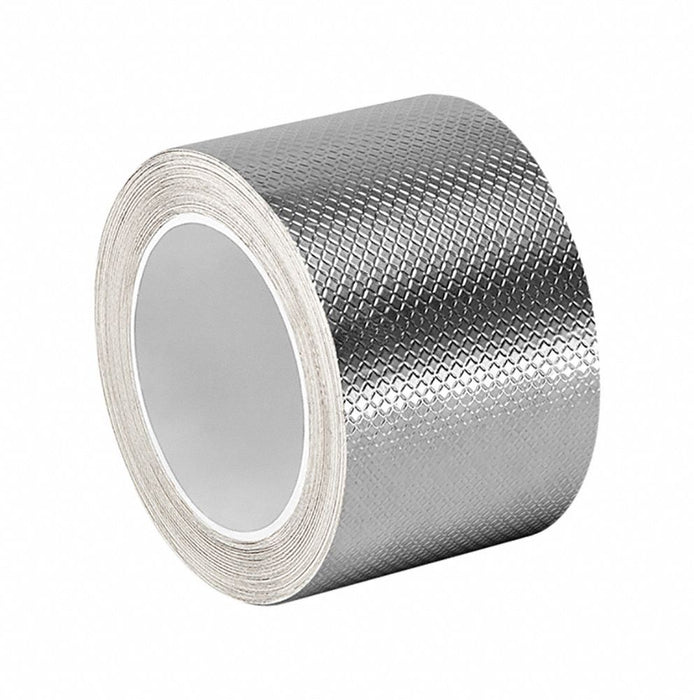

3M 1345 Conductive Electrical Tape, 2 in x 6 yd, Embossed Tin-Plated Copper

3M 1345 Conductive Electrical Tape, 2 in x 6 yd, Embossed Tin-Plated Copper

UPC: 888519078877 | Harmonization / Schedule B : 7410.12.0060

Country of Origin: Taiwan | Shipping Weight: 0.2 lbs

$177.00 - $177.00
$177.00
$177.00 - $177.00
$177.00

Conductive Electrical Tape, Tape Backing Material Copper Foil, 2 in, 6 yd, Tape Color Silver, Tape Sub-Type Ultra-Conductive Embossed Foil, Tape Adhesive Material Acrylic, 4 mil, 3M(TM), 1345, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 266 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 66 dB, Liner Included Liner Included, Product Form Continuous Roll, Tape Adhesive Format Single-Sided

Tape Color Silver
Series 1345
Performance Temp. -40 Degrees to 130 Degrees C
Tape Tensile Strength 25 lb/in
Standards RoHS 2011/65/EU, UL Listed
Adhesion Strength 45 oz./in.
Shape Continuous Roll
Material Embossed Tin-Plated Copper Foil
Number of Adhesive Sides 1
Liner Included Liner Included
Tape Adhesive Material Acrylic
Tape Sub-Type Ultra-Conductive Embossed Foil
Voltage Rating 600 V
Product Form Continuous Roll
Breaking Strength 25 lb/in
Minimum Tape Performance Temperature -40 Degrees F
Maximum Tape Performance Temperature 266 Degrees F
Adhesion to Steel 45 oz/in
Tape Type Conducting Electrical Tape
Tape Resistance Properties Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant
Tape Properties Electrically Conductive, Die-Cuttable, Solderable
Shielding Effectiveness 66 dB
Backing Material Finish Tin-Plated
Insulation Resistance 5.00 x 10^-3 ohm/sq
Country of Origin Taiwan, Province of China
