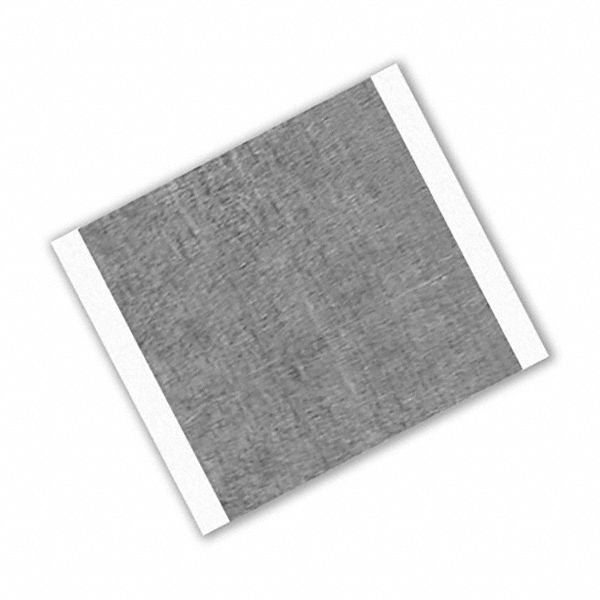

3M 1170 Conductive Electrical Tape Squares, 1 1/2 in x 1/2 in, PK100

3M 1170 Conductive Electrical Tape Squares, 1 1/2 in x 1/2 in, PK100

UPC: 888519082867 | Harmonization / Schedule B : 7607.19.0000

Country of Origin: Taiwan | Shipping Weight: 0.25 lbs

$134.05 - $134.05
$134.05
$134.05 - $134.05
$134.05

Conductive Electrical Tape, Tape Backing Material Aluminum Foil, 1 1/2 in, 1/2 in, Tape Color Silver, Tape Sub-Type General Purpose Foil, Tape Adhesive Material Acrylic, 3.2 mil, 3M(TM), 1170, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 265 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 69 dB, Liner Included Liner Included, Product Form Pre-Cut, Tape Adhesive Format Single-Sided

Tape Color Silver
Series 1170
Performance Temp. -40 Degrees to 130 Degrees C
Tape Tensile Strength 20 lb/in
Adhesion Strength 35 oz./in.
Material Aluminum Foil
Standards RoHS 2011/65/EU, UL Listed
Tape Backing Material Aluminum Foil
Shape Square
Number of Adhesive Sides 1
Minimum Tape Performance Temperature -40 Degrees F
Liner Included Liner Included
Maximum Tape Performance Temperature 265 Degrees F
Voltage Rating 600 V
Tape Adhesive Format Single-Sided
Tape Type Conducting Electrical Tape
Tape Backing Construction Foil
Breaking Strength 20 lb/in
Tape Sub-Type General Purpose Foil
Tape Properties Electrically Conductive, EMI-Shielding
Shielding Effectiveness 69 dB
Adhesive Properties Conductive
Product Form Pre-Cut
Tape Resistance Properties Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant
Specifications Met EU, RoHS, UL Listed
Tape Adhesive Material Acrylic
Liner Material Paper
Elongation 5 %
Adhesion to Steel 35 oz/in
Pre-Cut Shape Square
Pre-Cut Dispensing Form Roll
Flame Retardant Flame-Retardant
Country of Origin Taiwan, Province of China
