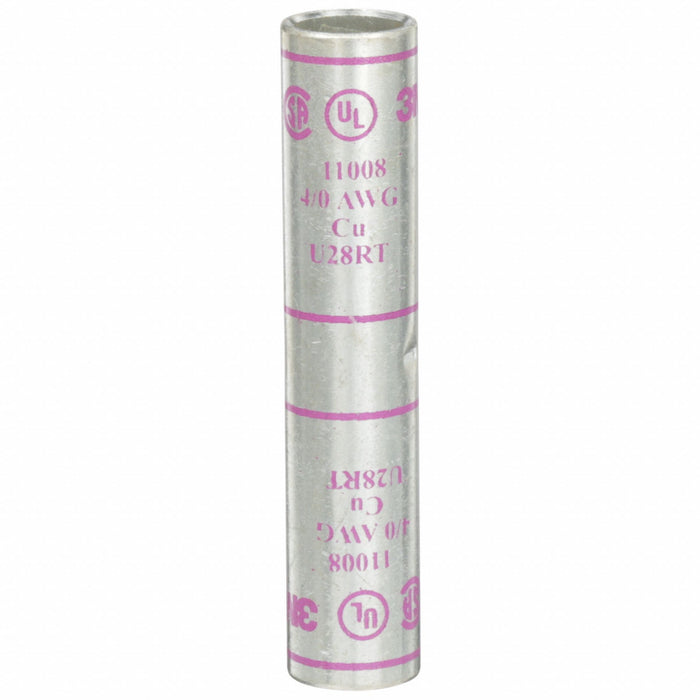

3M 11008 Open Barrel Splice, 4/0 AWG, Purple Code, 3.38 in, Long Barrel

3M 11008 Open Barrel Splice, 4/0 AWG, Purple Code, 3.38 in, Long Barrel

UPC: 054007128243 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 1.57 lbs

$305.30 - $305.30
$305.30
$305.30 - $305.30
$305.30

Open Barrel Splices, Color Code Purple, Die Code 54, For Wire Type Solid, Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 4/0 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.55 in, Barrel Outside Diameter 0.69 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper

Type Crimp
Color Purple
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Standards CSA Certified, UL Listed
Material High Conductivity Copper
Die Code 54
Indoor/Outdoor Both
Barrel Style Long Barrel
Product Series 11000
Electrical Connector Type Compression Connectors
For Use With Copper Conductor Only
Connector Base Metal Copper
Termination Style Crimp
Compatible Installation Tool Model Number 10000 to 11000
Color Code Purple
Contact Finish Tin
Special Features Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools
Contact Material Copper
For Wire Type Solid, Stranded
Series 10000
Country of Origin Chile
