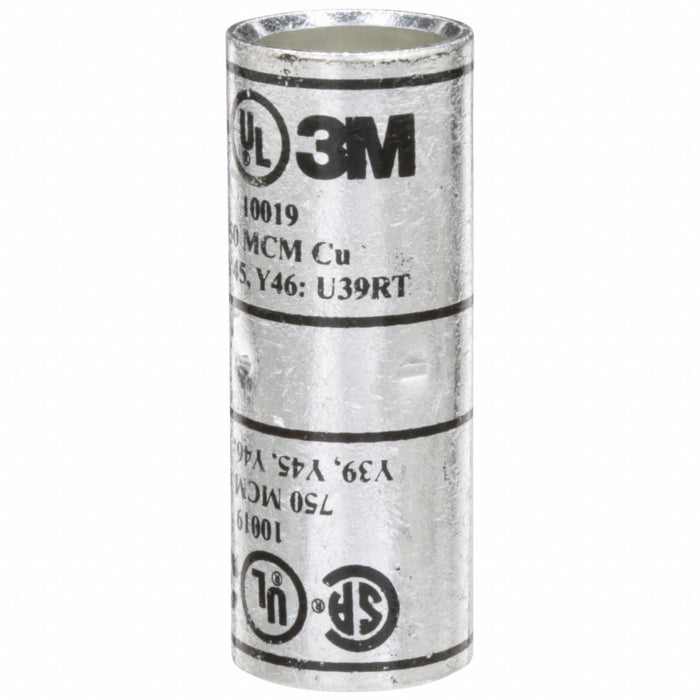

3M 10019 Open Barrel Splice, 750 kcmil, Black Code, 3.38 in, Copper

3M 10019 Open Barrel Splice, 750 kcmil, Black Code, 3.38 in, Copper

UPC: 054007129158 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 1.7 lbs

$423.91 - $423.91
$423.91
$423.91 - $423.91
$423.91

Open Barrel Splices, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Black, Die Code 106, For Conductor Material Copper, For Wire Type Solid, Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 750 kcmil, Number of Crimps 6, Overall Length 3.38 in, Maximum Operating Temperature 221 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438

Type Crimp
Color Black
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Die Code 106
Standards CSA Certified, UL Listed
Material Copper
Seam Style Seamless
Number of Crimps 6
Compatible with Product Type Copper Conductor
Compatible with Series 11000
Compatible Installation Tool Model Number 10000 to 11000
Special Features Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools
For Wire Type Solid, Stranded
For Conductor Material Copper
Finish Tin Plated
Contact Finish Tin
Contact Material Copper
Barrel Finish Tin Plated
Color Code Black
Termination Style Crimp
Series 10000
Country of Origin Chile
