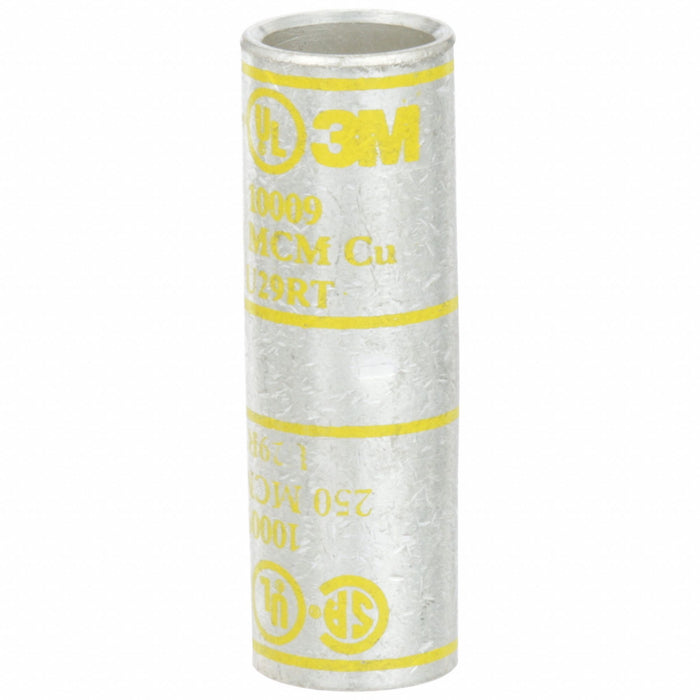

3M 10009 Open Barrel Splice, 250 kcmil, Yellow Code, 2.25 in, Copper

3M 10009 Open Barrel Splice, 250 kcmil, Yellow Code, 2.25 in, Copper

UPC: 054007128328 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 0.3 lbs

$123.27 - $123.27
$123.27
$123.27 - $123.27
$123.27

Open Barrel Splices, Color Code Yellow, Die Code 13456, A29R, W166, 13463, U29RT, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 250 kcmil, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified, UL Listed, Contact Finish Tin, Contact Material Copper, Minimum Operating Temperature 73 Degrees F

Type Splice
Color Yellow
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Standards CSA Certified, UL Listed
Material High Conductivity Copper
Die Code 13456, A29R, W166, 13463, U29RT
Special Features Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools
Contact Finish Tin
Series 11000
For Wire Type Stranded
Contact Material Copper
Color Code Yellow
Country of Origin Chile
