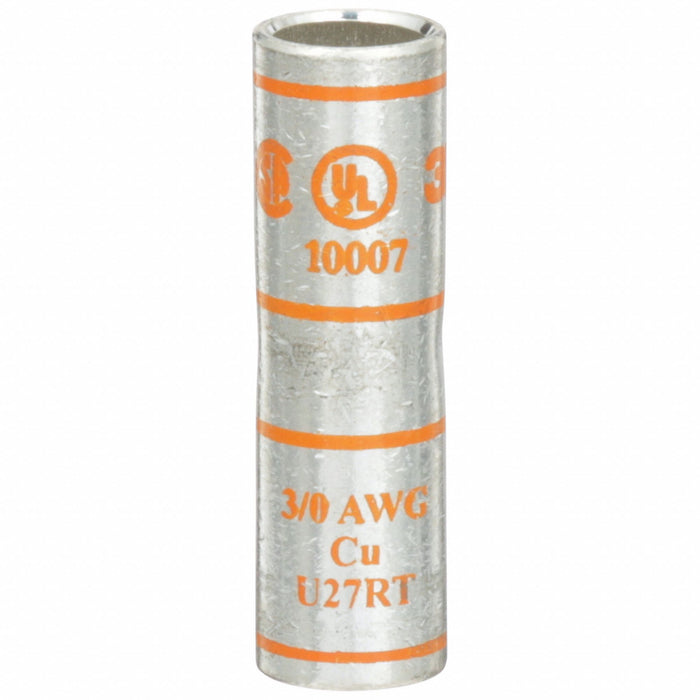

3M 10007 Open Barrel Splice, 3/0 AWG, Orange Code, 2.13 in, Copper

3M 10007 Open Barrel Splice, 3/0 AWG, Orange Code, 2.13 in, Copper

UPC: 054007127901 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 0.9 lbs

$281.78 - $281.78
$281.78
$281.78 - $281.78
$281.78

Open Barrel Splices, Color Code Orange, Die Code 50, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 3/0 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.49 in, Barrel Outside Diameter 0.62 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper

Type Splice
Color Orange
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Die Code 50
Material High Conductivity Copper
Standards CSA Certified, UL Listed
Contact Finish Tin
For Wire Type Stranded
Series 10000
Special Features Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools
Compatible Installation Tool Model Number 10000 to 11000
Contact Material Copper
Color Code Orange
Country of Origin Chile
