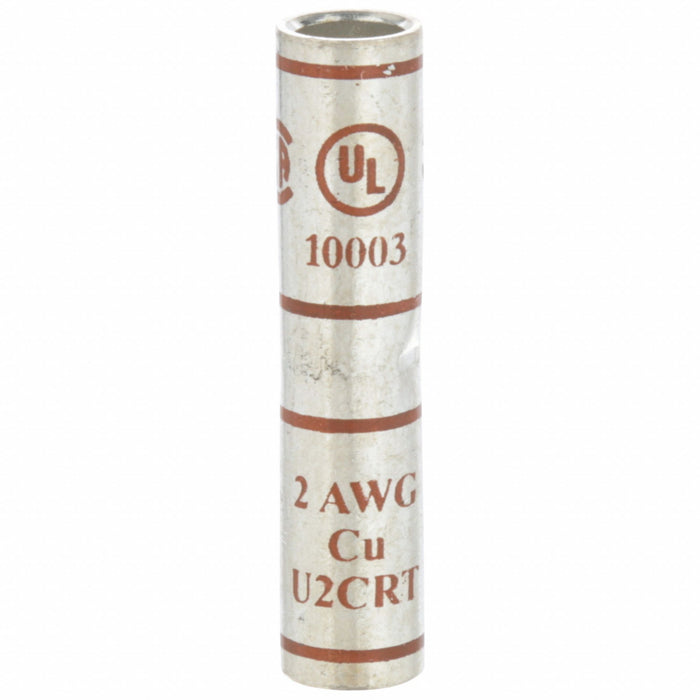

3M 10003 Open Barrel Splice, 2 AWG, Brown Code, 1.88 in, Copper

3M 10003 Open Barrel Splice, 2 AWG, Brown Code, 1.88 in, Copper

UPC: 054007127338 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 1 lbs

$453.50 - $453.50
$453.50
$453.50 - $453.50
$453.50

Open Barrel Splices, Color Code Brown, Die Code 13461, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 2 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.31 in, Barrel Outside Diameter 0.41 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper

Type Splice
Color Brown
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Die Code 13461
Material High Conductivity Copper
Standards CSA Certified, UL Listed
Compatible Installation Tool Model Number 10000 to 11000
For Wire Type Stranded
Contact Finish Tin
Special Features Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools
Color Code Brown
Series 10000
Contact Material Copper
Country of Origin Chile
