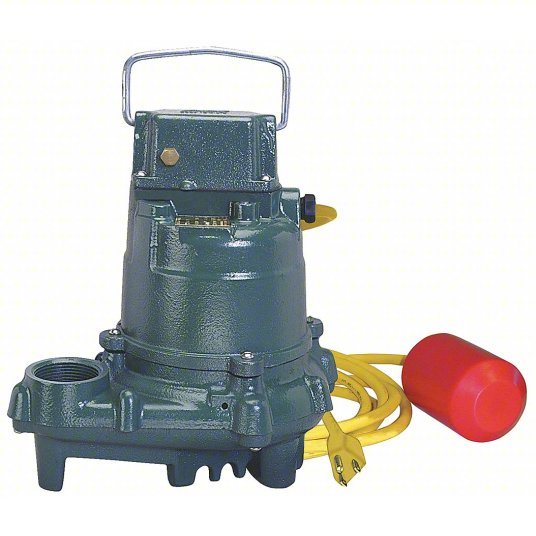

Zoeller BN2057 High-Temperature Submersible Sump Pump 1/3, Tether Float, 200°F Max. Liquid Temp.

UPC: 053514263195 | Harmonization / Schedule B : 8413.70.2004

Country of Origin: | Shipping Weight:

$742.99 - $742.99
$742.99
$742.99 - $742.99
$742.99
High-Temperature Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.7 A, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 4.25 in, On Point 13 1/4 in, Body Material Cast Iron, Impeller Material Cast iron, Shaft Seal Material - Pumps Carbon, Ni-Resist, Flow Rate @ 5 Ft. of Head 39.0 gpm, Flow Rate @ 10 Ft. of Head 31 gpm, Flow Rate @ 15 Ft. of Head 17.0 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 18 in, Body Dia. 10 3/32 in
Discharge NPT 1-1/2" - 3"
Housing Material Cast iron
HP 1/3
Hz 60 Hz
Impeller Material Cast iron
Max. Head 18 ft
Max. Temp. 180 Degrees F
Motor RPM 1725
Motor Type Thermally Protected
Voltage 115
GPM of Water @ 15 Ft. of Head 17
Alarm Included No
Pump HP 3/10
Voltage - Pumps 120VAC
Switch Type - Pumps Tether
On Point 13 1/4 in
Bearing Type Sleeve
Gauge/Conductor 16/3
Impeller Material - Pumps Cast Iron
Item - Sump Pumps Submersible Sump Pump
Base Material Cast Iron
Switch Type Tether
Item High-Temperature Submersible Sump Pump
Thermal Protection Yes
GPM of Water @ 5 Ft. of Head 39
Max. Head - Pumps 18 ft.
Off Point 4.25 in
Shaft Seal Material - Pumps Carbon, Ni-Resist
Amps 9.7 A
NEC Cord Designation SOW
Pump Body Material Cast Iron
Mechanical Seal CRB/CMC
Max. Liquid Temp. 200 Degrees F
GPM of Water @ 10 Ft. of Head 31
Amps - Pumps 9.70
Duty Intermittent
RPM 1,550 RPM
Flow Rate @ 15 Ft. of Head 17.0 gpm
Discharge 1-1/2 in FNPT
Body Material Cast Iron
Discharge Standard NPT
Flow Rate @ 10 Ft. of Head 31 gpm
Switch Actuation Tether Float
Flow Rate @ 5 Ft. of Head 39.0 gpm
Rated Voltage 115V AC
Switch Electrical Connection Piggyback
Duty Cycle Intermittent
Discharge Gender Female
