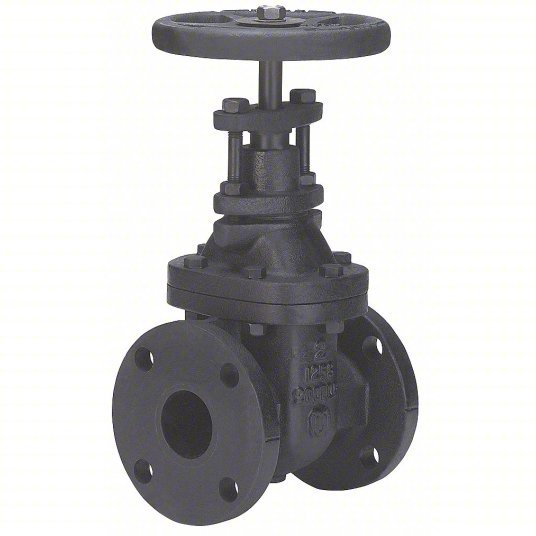

Milwaukee 2882-M 8" Gate Valve 8 in Nominal Valve Size, Cast Iron, Non-Rising, Class 125 Flange, Wheel

Gate Valve, For Media Gas, Oil, Water, Body Material Cast Iron, Nominal Valve Size 8 in, ANSI Flange Class 125, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam 125 psi, Coefficient of Volume (Cv) 4,150, Stem Type Non-Rising, Stem Material Brass, Wedge Style Solid, Wedge Material Cast Iron, Seat Material Bronze, Seal Material Bronze, Handle Type Wheel, Bonnet Material Cast Iron, Bonnet Style Bolted, Connection Gender - Side 1 Not Applicable, Connection Type - Side 1 Flange.

This product is not low-lead certified. By purchasing this product, you agree you will not use it to convey or dispense water for potable (suitable for human consumption) use.

Connection Type	Flanged
Body Material	Cast Iron
UPC	697988625624
Handle Material	Cast Iron
Bonnet Style	Bolted
Stem Material	Brass
Handle Type	Hand Wheel
Valve Class	Class 125
Body Material - Valves	Cast Iron
Max. Cold Working Pressure - CWP	200 psi
Top of Handle to Inlet Center	27 3/4 in
Valve Stem Type	Non-Rising
Wedge Material	Cast Iron
Valve Max. Fluid Temp.	353 Degrees F
Max. Water Pressure - CWP	200 psi
Standards	MSS-SP-70
Max. Working Steam Pressure - WSP	125 psi
Seal Material	Bronze
Stem Type	Non-Rising
Seat Material	Bronze
Bonnet Material	Cast Iron
Coefficient of Volume (Cv)	4,150
Operating Temperature - Minimum	-40 Degrees F
For Media	Gas, Oil, Water
Maximum Pressure - Steam	125 psi
Number of Flange Bolt Holes	8
Connection Type - Side 2	Flange
ANSI Flange Class	Class 125
Connection Type - Side 1	Flange
Operating Temperature - Maximum	353 Degrees F
Maximum Pressure - Operating	200 psi
Wedge Style	Solid
