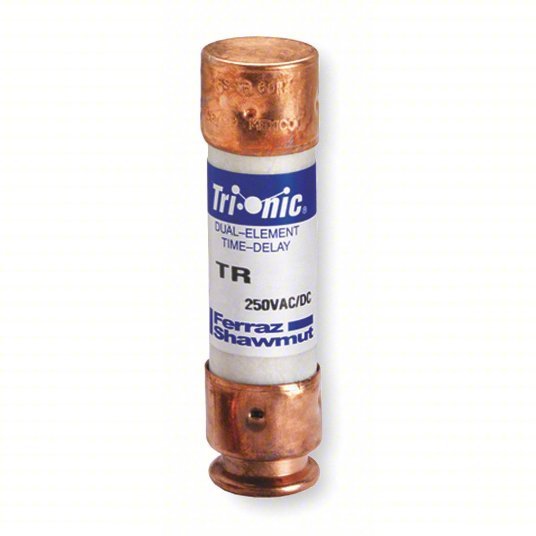

Mersen TR60R Fuse 60 A, 250V AC, 3 in L x 13/16 in dia Fuse Size, Cylindrical Body, TR-R - KVM Tools Inc.KV4YZE6

Mersen TR60R Fuse 60 A, 250V AC, 3 in L x 13/16 in dia Fuse Size, Cylindrical Body, TR-R

UPC: 782001747947 | Harmonization / Schedule B : 8536.10.0040

Country of Origin: | Shipping Weight:

$12.09 - $12.09
$12.09
$12.09 - $12.09
$12.09
Fuse, 60 A, 250V AC, 250V DC, Class RK5, TR-R Series, Nonindicating, Time Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC, 20kA at 250V DC, Fuse Size 3 in L x 13/16 in dia, Length 3 in, Diameter 13/16 in, Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R, Equivalent Series ECNR, FLNR, FRN-R, TR-R, Compatible Fuse Block Series 2HKRFB, Body Material Polyester, Dual Element, Standards CSA, UL
Item Fuse
Amps 60A
Speed Time Delay
Series TR-R
AC Voltage Rating 250V AC
DC Voltage Rating 250V DC
Interrupt Rating 200kA at 250V AC, 20kA at 250V DC
Class RK5
Visual Indication Nonindicating
Body Style Cylindrical
Fits Fuse Block Style Rejection
Body Material Polyester
Element Dual
Standards CSA, UL
Equivalent Brand and Series Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
Equivalent Series ECNR, FLNR, FRN-R, TR-R
Compatible Fuse Block Series 2HKRFB
Fuse Holder Code K
Fuse Speed Time Delay
Fuse Amps 60A
Rejection / Nonrejection Rejection
Fuse Voltage Rating 250VAC/DC
Functionally Equal To Bussmann FRN-R, Littelfuse FLNR
Fuse Interrupt Rating 200kA at 250VAC, 20kA at 250VDC
Indicating / Nonindicating Nonindicating
Weight 0.135 lb
Mounting Clip
Connection Type Ferrule
AC Max I.R./Breaking Capacity: I1 200 kA
Speed/Characteristic Time Delay
Ampere Rating 60 A
Rated voltage AC UL 250 V
APPLICATIONS Motor circuits; Mains; Feeders; Branch circuits; Transformers; Service entrance equipment; General-purpose equipment
Connection/Terminal Type Ferrule
Frequency 50/60 Hz
Rated voltage DC UL 250 V
APPROVALS & STANDARDS UL listed to standard 248-12 File E2137; CSA certified to standard C22.2 no. 248.12; DC listed to UL standard 248 TRS only
Fuse Class Class RK5
Body/Insulating Material PolyTube
Connection/Terminal Material Copper
Item Description (ERP) 250V 60A 3x13/16 RK5 TD F
Short Description Fuse Tri-Onic® 250V 60A Time-Delay Class RK5 TR Series
