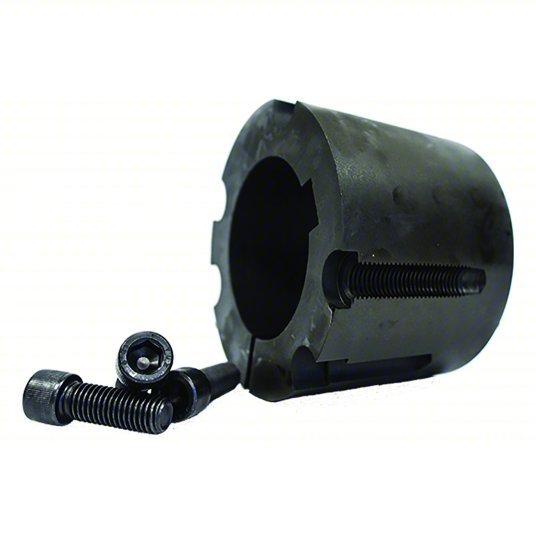

KVM Tools 3030X2-15/16 Taper Lock Bushing 3030, 2 15/16 in Bore Dia, 3 in Overall Lg, 4.25 in Overall Dia

UPC: | Harmonization / Schedule B : 8483.40.9000

Country of Origin: China | Shipping Weight: 9 lbs

Original price $0
Original price $126.51 - Original price $126.51
Original price
Current price $126.51
$126.51 - $126.51
Current price $126.51
 More payment options

Taper lock bushings are used in low-profile, high-power applications to strengthen the mounting of the pulley or sprocket onto the drive shaft and must be paired with a bushed-bore pulley or sprocket of the same bore bushing series.

Manufacturer Part Number: 3030X2-15/16
Bushing Type: Taper Lock
Bore Bushing Series : 3030
Bore System of Measurement: Inch
For Shaft Type: Keyed
Bore Diameter: 2-15/16 in
Keyway Width: 3/4 in
Keyway Depth: 3/8 in
Overall Diameter: 4.25 in
Bolt Circle Diameter: 4 in
Overall Length: 3 in
Flange Type: Flangeless
Maximum Torque: 24,000 in-lb
Taper: 8°
Material: Steel
Includes: (2) Set Screws
UNSPSC: 0
