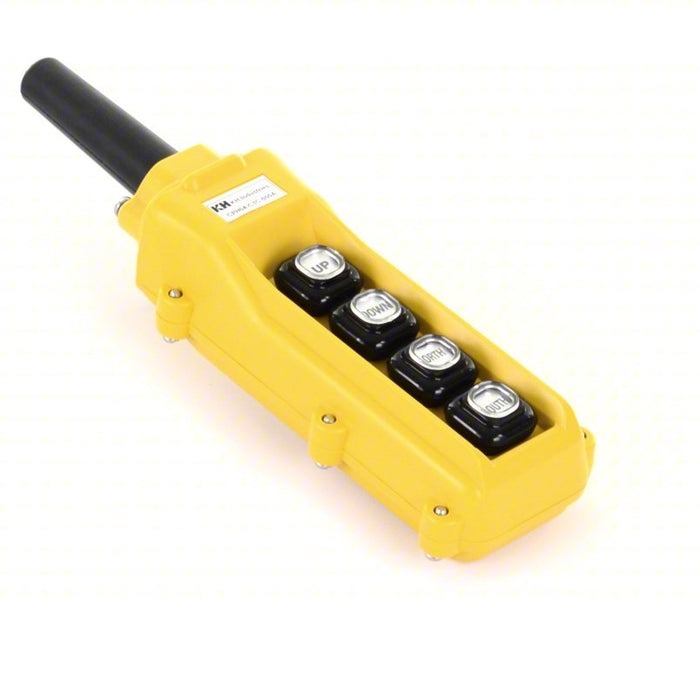

KH Industries CPH04-D1D-000A Pendant Control Station (4) Push Buttons, 1NO, No Legend, NEMA 4/4X

UPC: 818276835970 | Harmonization / Schedule B : 8537.10.6000

Country of Origin: | Shipping Weight:

Original price $437.49 - Original price $437.49
Original price $437.49 - Original price $437.49
Original price
Current price $437.49
$437.49 - $437.49
Current price $437.49
 More payment options
Pendant Control Station, Number of Operators 4, Number of Pilot Lights 0, Legend No Legend, Type of Operator Push Button, Action Momentary/Momentary/Momentary/Momentary, Operator Color Yellow, Contact Form 1NO, Mechanical Interlock Yes, NEMA Rating 4X, Contact Rating 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC, IP Rating IP65, Hub 5/16 in to 53/64 in, Height 7.7 in, Width 3.1 in, Depth 1.5 in, Enclosure Material Thermoplastic, Enclosure Color Yellow, Standards cUL, UL Listed
Contact Form 1NO
Legend No Legend
Type of Operator Push Button
Number of Pilot Lights 0
Number of Operators 4
NEMA Rating 4x
Hub Style Dead-End
Housing Color Yellow
Standards cUL, UL Listed
Contact Rating 0.4A @ 120V DC, 2A @ 24V DC, 5A @ 125/240V AC
Action Momentary/Momentary/Momentary/Momentary
Hub 5/16 in to 53/64 in
Mechanical Interlock Yes
Includes Cable Bushing(s)
Housing Material ABS
Number of Speeds 2
Enclosure Material Thermoplastic
IP Rating IP65
Switch Type Buttons 1, 2, 3, 4: Two Speed Momentary with Interlock
Operator Color Yellow
Enclosure Color Yellow
Product Type Pendant Control Station
Includes Mechanical Interlock Mechanical Interlock Included
Hazardous Location Specification Not Rated
AC Contact Rating 5 A @ 125/240 V
DC Contact Rating 0.4 A @ 120 V, 2 A @ 24 V
Operator Configuration (4) Push Buttons
Resistance Properties Corrosion Resistant, Shock Resistant, Vibration Resistant
NEMA Enclosure Rating 4, 4X
Cable Bushing .31-.83
Speed Two
