Hamilton S-7516-SPRT Plate Caster with Flat-Free Wheels 16 in Wheel Dia., 2900 lb, 18 1/2 in Mounting Ht, D - KVM Tools Inc.KV6AZP3

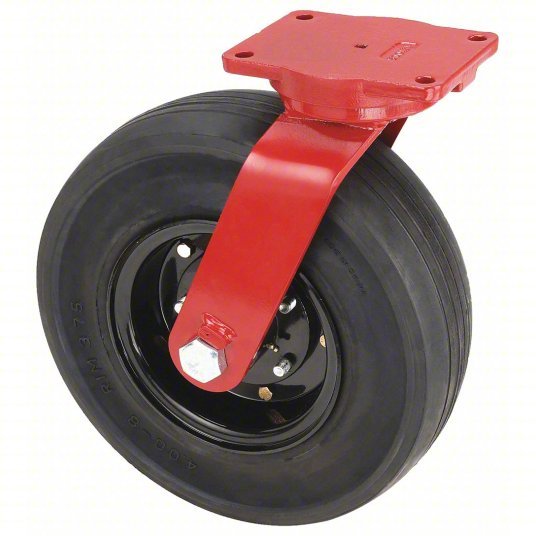

Hamilton S-7516-SPRT Plate Caster with Flat-Free Wheels 16 in Wheel Dia., 2900 lb, 18 1/2 in Mounting Ht, D

UPC: 461394400928 | Harmonization / Schedule B : 8716.90.3000

Country of Origin: | Shipping Weight:

$1,153.63 - $1,153.63
$1,153.63
$1,153.63 - $1,153.63
$1,153.63
Plate Caster with Flat-Free Wheels, Load Rating Range 1000 to 2999 lb, Load Rating 2900 lb, Tread Ribbed, Wheel Dia. 16 in, Wheel Width 5 1/8 in, Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in, Caster Brake Type No Brake Included, Caster Product Group Swivel Caster, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 8 in, Frame Finish Enamel, Tread Color Black
Caster Brake Included No
Caster Load Rating Range Heavy-Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Pneumatic
Load Rating 2900 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Plate Thickness 1/2"
Caster Wheel Bearings Ball
Item Plate Caster with Flat-Free Wheels
Tread Color Black
Ply 6
Non-Marking No
Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Caster Temp. Range -30 Degrees to 120 Degrees F
Plate Caster Bolt Hole Pattern D
Caster Raceway Single Ball
Frame Material Forged Steel
Caster Plate Hole Pattern D
Frame Finish Enamel
Caster Mounting Type Plate
Caster Product Group Swivel Caster
Outside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Tread Ribbed
Hub Material Steel
Hub Type Symmetrical
Hub Color Black
Caster Temp. Range Available Yes
Caster Brake Type No Brake Included
Includes Thread Guards No
Operating Temperature Range -30 Degrees to 120 Degrees F
Load Rating Range 1000 to 2999 lb
Wheel Bearing Type Roller
Swivel Raceway Type Single Ball
Wheel/Tread Hardness 65 Shore A
Caster Frame Material Steel
Wheel/Tread Hardness Rating Soft
Swivel Construction Kingpin
Number of Mounting Holes 4
Wheel/Tread Material Rubber
Mounting Plate Bolt Hole Pattern D
