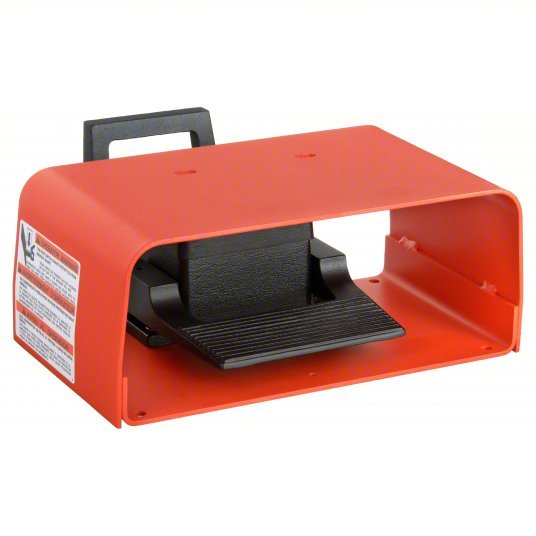

Gai-Tronics 51052-003 Footswitch Explosion Proof Single SPDT

UPC: 783667219854 | Harmonization / Schedule B : 8536.50.9035

Country of Origin: United States | Shipping Weight: 8.81 lbs

$1,943.29 - $1,943.29
$1,943.29
$1,943.29 - $1,943.29
$1,943.29
Foot Switch, SPDT Contact Form, Voltage Rating 125/250V AC, NEMA Rating 2, 7D, 9F, Current Rating 15 (10), Material Aluminum, Color Orange, Momentary Action, Length 10 1/4 in, Width 11 in, Depth 4 3/8 in, HP 3/4 (1), Cord Length Not Applicable, IP Rating IP41, Features (4) Mounting Holes, Standards cULus, RoHS
MATERIALS Aluminum full guard with integral base plate painted Alert Orange All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Integral handle for ease of moving
PURPOSE Equipment for Hazardous Locations
Electrical Ratings 15A, 125 VAC, 10A, 250 VAC, 3/4 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max. 3A 28 VDC
Shields & Guards Guarded
FEATURES & BENEFITS Non sparking cast aluminum housing 4 holes provided for rigid mounting to floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time
Actions Momentary
Cable Entries 3/4"-14 NPT threaded entry
Circuitries SPDT
Series Explosion Proof 500
Includes Potentiometer No Potentiometer Included
AC Contact Rating 10 A @ 250 V, 15 A @ 125 V
NEMA Enclosure Rating 2
Power Source Electrically Corded
Resistance Properties Explosion Proof
Termination Connection Type 3/4"-14 NPT Conduit Hole
Horsepower 0.75 HP @ 125V AC, 1 HP @ 250V AC
Number of Pedals 1
Hazardous Location Specification Class I, Div 1, Group D, Class II, Div 1, Group F, G
Includes Foot Guard Guard Included
DC Contact Rating 3 A @ 28 V
