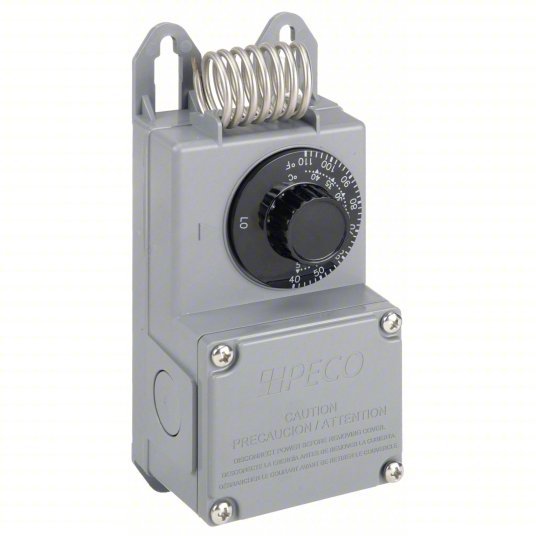

Peco TF115-001 Line Volt Mechanical Tstat Heat or Cool, Plastic, 40° to 110°F, 3°F, Hydraulic Air Coil
UPC: 879978000295 | Harmonization (Schedule B): 9032.10.0030
SKU KV4E636
Original price
$62.78
-
Original price
$62.78
Original price
$62.78
$62.78
-
$62.78
Current price
$62.78
The Peco TF115-001 is a versatile line voltage mechanical thermostat designed for both heating and cooling systems. Its temperature range of 40° to 110°F and precision of 3°F ensures optimal comfort in any environment. Its hydraulic air coil technology guarantees reliable and efficient performance. Perfect for any expert looking for a professional and objective solution for temperature control.
| Switch Action | Open/Close on Rise |
| Voltage | 120 to 277V AC |
| Sensor Type | Hydraulic Air Coil |
| Differential | 3 Degrees F Fixed |
| Thermostat Control Range | 40 Degrees to 110 Degrees F |
| Mounting Location | Indoor/Outdoor |
| Switch Type | SPDT |
| Color | Gray |
| Remote Sensing Bulb Included | No |
| Control Range | 40 Degrees to 110 Degrees F |
| Resistive Amps @ 208VAC | 25 A |
| Item | Line Volt Mechanical Tstat |
| Number of Switches | 1 |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Voltage | 24, 120 to 277V AC |
| Contact Rating Resistive @ 120V | 25 A |
| Mounting Type | Surface |
| Contact Rating Resistive @ 277V | 25 A |
| Locked Rotor Amps @ 120V | 80 A |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Standards | CSA Certified, NEC 547, UL Listed |
| Thermostat Heating/Cooling | Heating/Cooling |
| Remote Sensing Capability | No |
| Full Load Amps @ 240VAC | 12 A |
| Contact Rating Resistive @ 240V | 25 A |
| Thermostat Switch Type | SPDT |
| Enclosure Type | Rain Tight NEMA 4X |
| Thermostat Programmable | No |
| Full Load Amps @ 120VAC | 16 A |
| Locked Rotor Amps @ 240V | 60 A |
| Temp. Sensitivity | +/-3 Degrees F |
| Thermostat Type | Line Voltage |
| Application | Heat or Cool |
| Control Type | Knob |
| Number of Heating Stages | 1 |
| Temperature Sensitivity | +/-3 Degrees F |
| Maximum Operating Temperature | 110 Degrees F |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Color | Gray |
| Minimum Operating Temperature | 40 Degrees F |
| Number of Cooling Stages | 1 |
| Temperature Control Range | 40 Degrees to 110 Degrees F |
| Number of Poles | 1 |
| Full Load Amps @ 240V AC | 12 A |
| Resistive Amps @ 208V AC | 25 A |
| Stages | 1H/1C |
| Enclosure Material | Plastic |
| Pilot Duty Rating | 125VA @ 120 to 277V AC |
| Differential Type | Fixed |
| Operating Temperature Range | 40 Degrees to 110 Degrees F |
| Switch Type/Action | SPDT, Open/Close on Rise |
| Full Load Amps @ 120V AC | 16 A |
| Maximum Control Temperature | 110 Degrees F |
| Temperature Differential | 3 Degrees F |
| Minimum Control Temperature | 40 Degrees F |
| Temperature Scale | Celsius, Fahrenheit |
