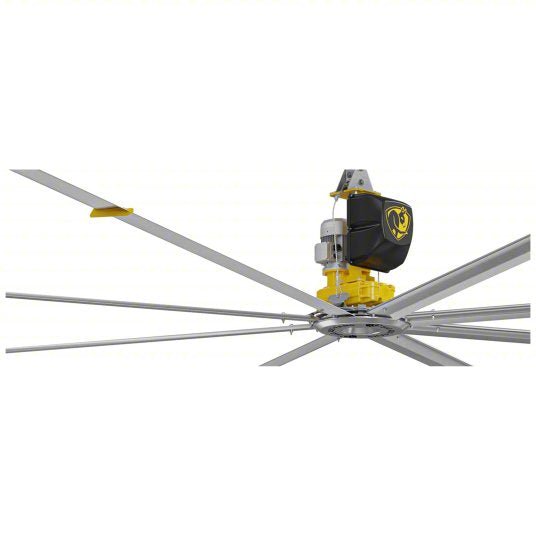

Big Ass Fans F-PFX4-2003S34X4 HVLS Fan 20 ft Blade Dia, Variable Speeds, 200 to 240 V AC, 46.5 in, 3 Phase, Yellow
UPC: | Harmonization (Schedule B):
SKU KV793PH1
Original price
$13,466.78
-
Original price
$13,466.78
Original price
$13,466.78
$13,466.78
-
$13,466.78
Current price
$13,466.78
Purpose-built to provide maximum airflow in even the toughest conditions, Powerfoil® X4 raises the bar on comfort, safety, and quality for industrial fans. Featuring a full-fan IP56 rating for use in harsh environments, a redesigned airfoil system, and diameter options ranging from 12 to 30 feet, the best-selling big fan in the world is now even better.
| Blade Material | Aluminum |
| Fan Blade Color | Yellow; Silver |
| Housing Finish | Yellow |
| Number of Blades | 8 |
| Reversible | Yes |
| Speed Controllable - Fans | Yes |
| Number of Speeds | Variable |
| Voltage | 200 to 240 V AC |
| Phase | 3 |
| Hz | 50/60 Hz |
| Standards | ETL/Intertek, C, CE, CB |
| Motor HP | 1 9/10 hp |
| Mount Type | Bar Joists; Purlins; Solid Beam |
| RPM | 76 RPM |
| Fan Mounting Location | IBeam |
| Environmental Applications | Industrial |
| Thermal Protection | Automatic |
| Max. Ambient Temp. | 122 Degrees F |
| Fan Watts | Greater Than725 W |
| Amps | 20 A |
| Includes | 11 in Downrod, Wall Control, Fan Motor Assembly, Airfoils, Manual Controller, Electrical Wires, Guy Wires, Safety Cable, Mounting Brackets, Hardware, Safety Cable, 18 in Downrod |
| Item | HVLS Fan |
| Blade Finish | Aluminum |
| Bearing Type | Permanently Lubricated and Fully Sealed |
| Motor Design | 3-Phase |
| Series | Powerfoil X4 |
| Sound Level | Less than 55 dBA |
| Fan Housing Color | Yellow |
| Light Kit | No Light |
| Motor Enclosure | AC;3-Phase |
